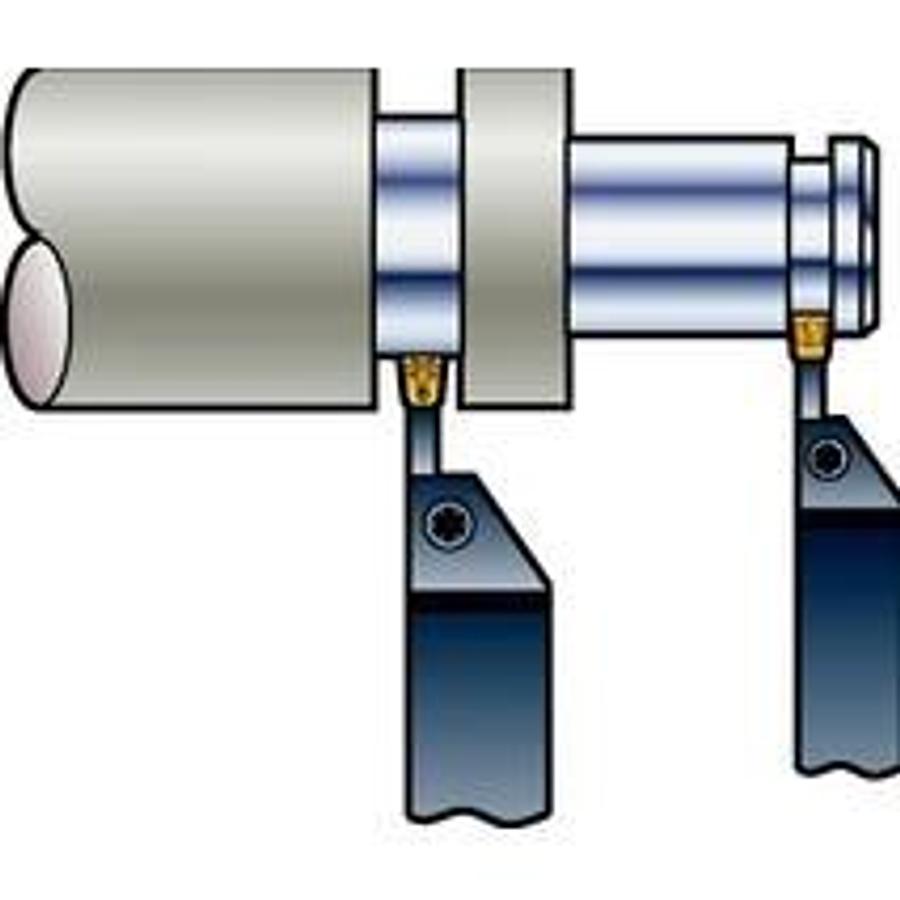

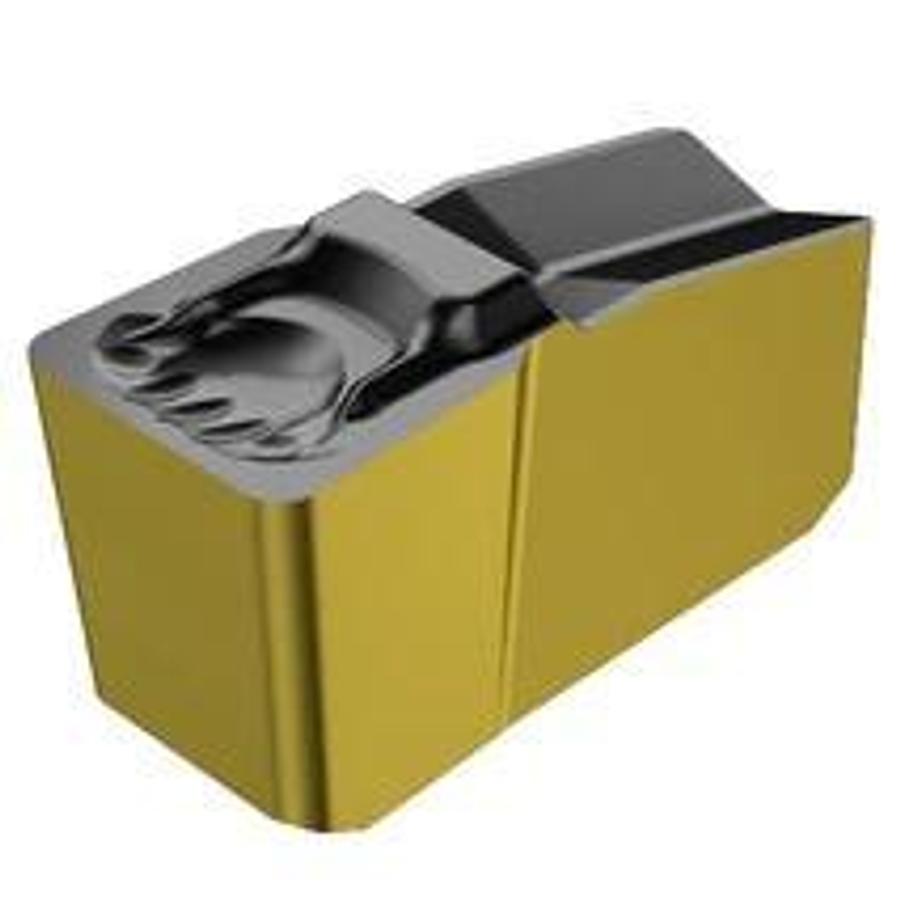

T-Max® Q-Cut indexable insert for grooving

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.7874 mm
• Corner radius, right (RER): 0.7874 mm
• fnx max: 0.40000000000000002 mm/r
• fnx min: 0.14999999999999999 mm/r
• fnx rec: 0.29999999999999999 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N151.2-A375-80-6G 4225
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.0508 mm
• Upper cutting width tolerance (CWTOLU): 0.0508 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 80
• Cutting direction (HAND): N
• Grade: 4225
• Chip breaker, manufacturer designation (CBMD): 6G
• Grooving width, nominal dimension (CW): 9,525 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.0508 mm
• Lower cutting width tolerance (CWTOLL): -0.0508 mm
• vc max: 155~200 m/min
• vc min: 115~140 m/min
• vc rec: 125~160 m/min
• Material classification level 1 (TMC1): K~P
• Grooving width nominal dimension C: 9,525 mm
• Corner radius right RE: 0.7874 °
• Grade: 4225
• All ISO application areas: P|K
