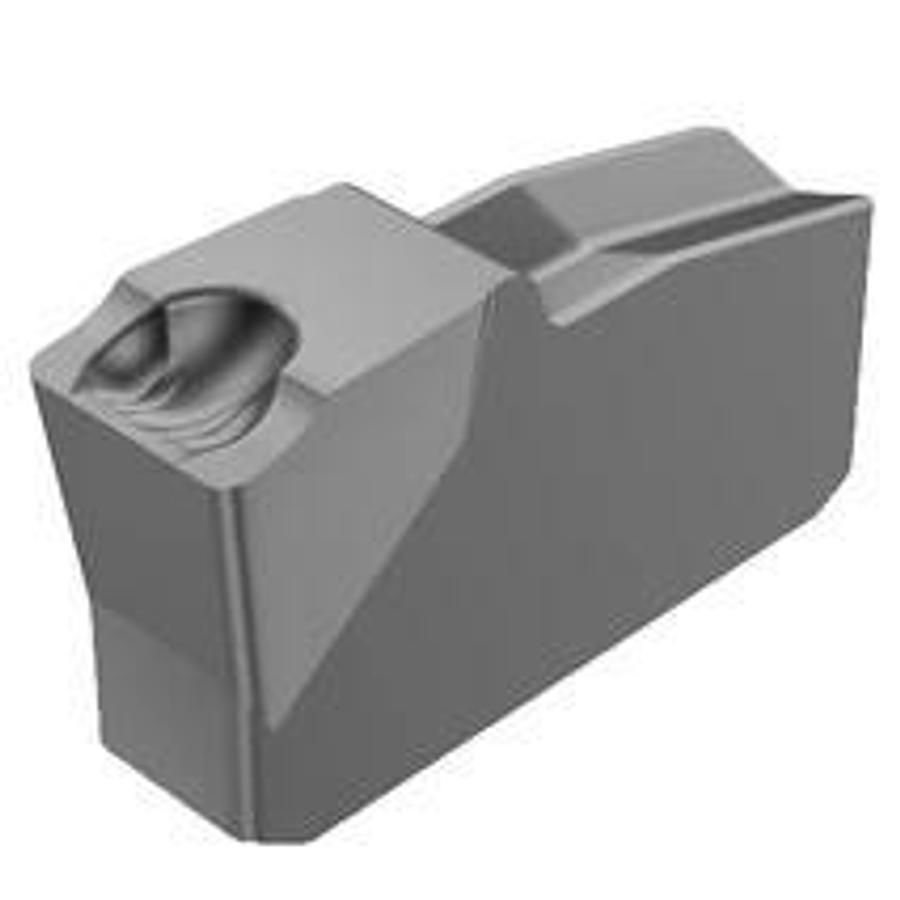

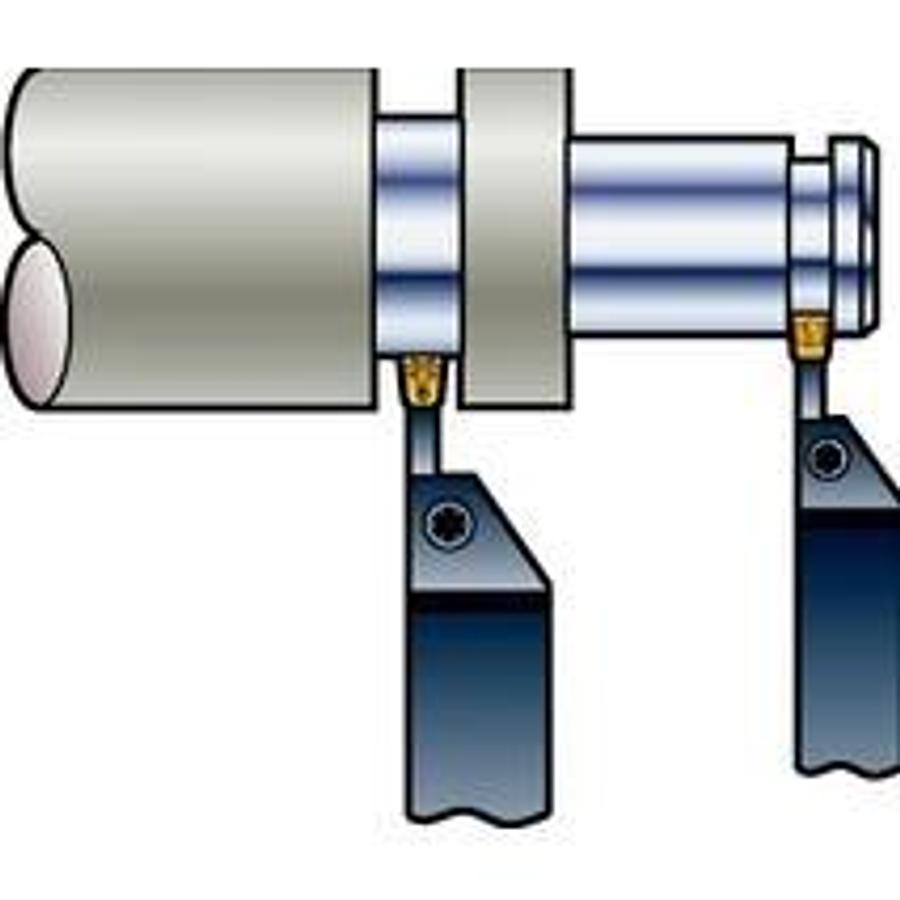

T-Max® Q-Cut indexable insert for grooving

• Application Area: TP
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.20000000000000001 mm/r
• fnx min: 7.0000000000000007E-2 mm/r
• fnx rec: 0.12 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N151.2-600-60-5G H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 60
• Cutting direction (HAND): N
• Grade: H13A
• Chip breaker, manufacturer designation (CBMD): 5G
• Grooving width, nominal dimension (CW): 6 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 1900~70~85 m/min
• vc min: 190~65~70 m/min
• vc rec: 1500~65~75 m/min
• Material classification level 1 (TMC1): K~M~N
• Grooving width nominal dimension C: 6 mm
• Corner radius right RE: 0.4 °
• Grade: H13A
• All ISO application areas: M|K|N|S
