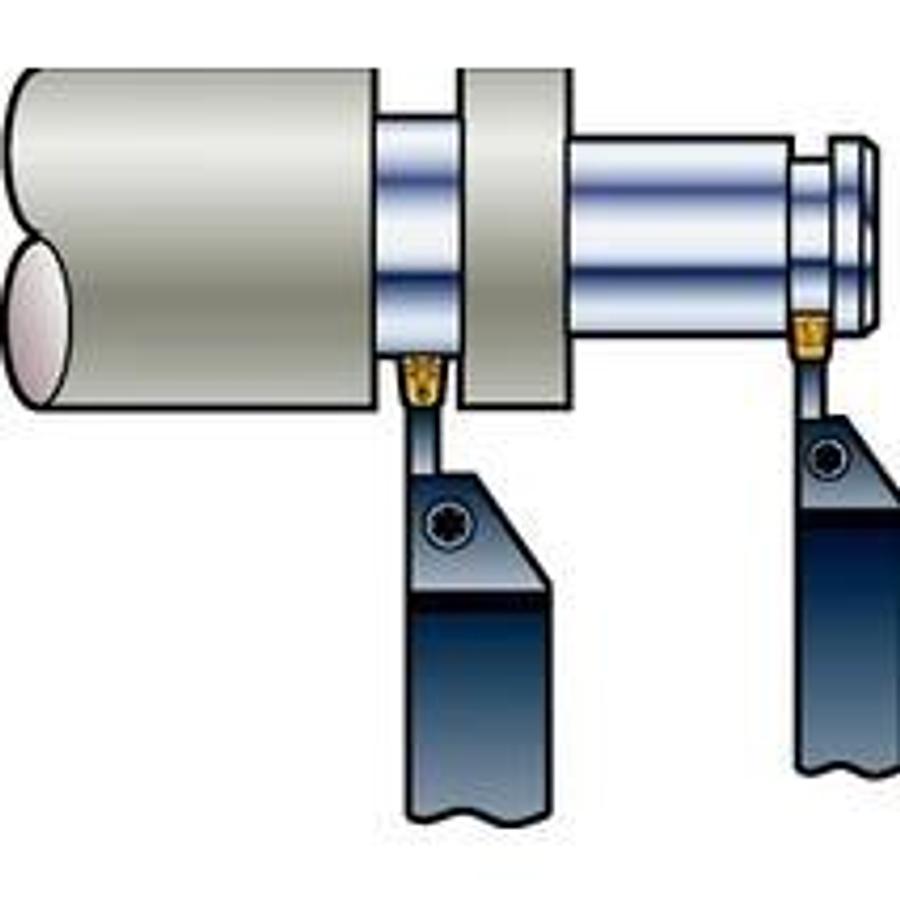

piercing

SANDVIK Q-CUT mold turning plates 5G

• Application Area: TP
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.14999999999999999 mm/r
• fnx min: 5.9999999999999998E-2 mm/r
• fnx rec: 8.0000000000000002E-2 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's item number: N151.2-300-30-5G 525
• Manufacturer: SANDVIK COROMANT
• IC Code: 18600
• ISO Cutting Tool Material: HT
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 30
• Cutting direction (HAND): N
• Grade: 525
• Chip breaker, manufacturer designation (CBMD): 5G
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: CERMET
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 170~205 m/min
• vc min: 145~180 m/min
• vc rec: 155~190 m/min
• Material classification level 1 (TMC1): M~P
• Grooving width nominal dimension C: 3 mm
• Corner radius right RE: 0.3 °
• Grade: 525
• All ISO application areas: P|M|K
