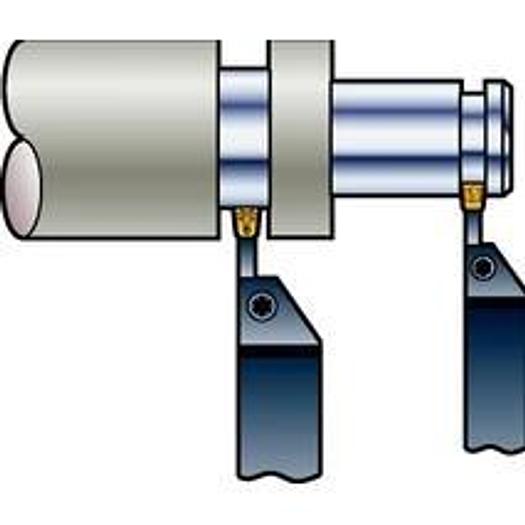

piercing

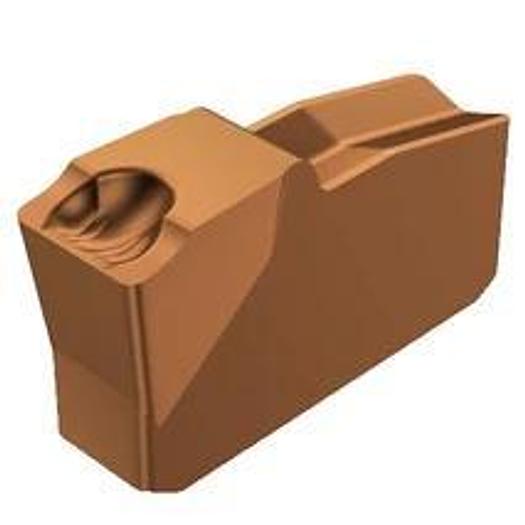

T-Max® Q-Cut indexable insert for grooving

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.14999999999999999 mm/r
• fnx min: 5.0000000000000003E-2~5.9999999999999998E-2mm/r
• fnx rec: 0.11 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's item number: N151.2-400-40-5G 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 40
• Cutting direction (HAND): N
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): 5G
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 160~195~240~45 m/min
• vc min: 120~135~170~32 m/min
• vc rec: 130~155~195~36 m/min
• Material classification level 1 (TMC1): C~M~P~S
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.3 °
• Grade: 1125
• All ISO application areas: P|M|K
