Parting

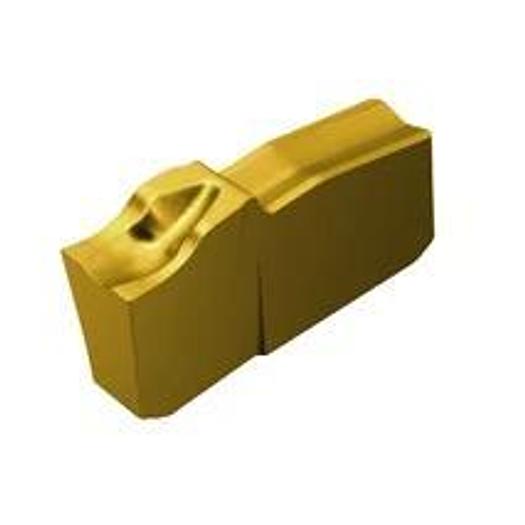

T-Max® Q-Cut parting insert

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.1 mm
• fnx max: 0.16 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 5.9999999999999998E-2 mm/r
• Main clearance angle (AN): 7 deg
• Main cutting edge angle, right (PSIRR): 20 deg
• Manufacturer item number: R151.2-200 20-5F 2135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.2 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 20
• Cutting direction (HAND): R
• Grade: 2135
• Chip breaker, manufacturer's designation (CBMD): 5F
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.05 mm
• vc max: 150~180~35 m/min
• vc min: 100~125~26 m/min
• vc rec: 115~145~29 m/min
• Material classification level 1 (TMC1): M~P~S
• Grooving width nominal dimension C: 2 mm
• Grade: 2135
• All ISO application areas: P|M|K|S
