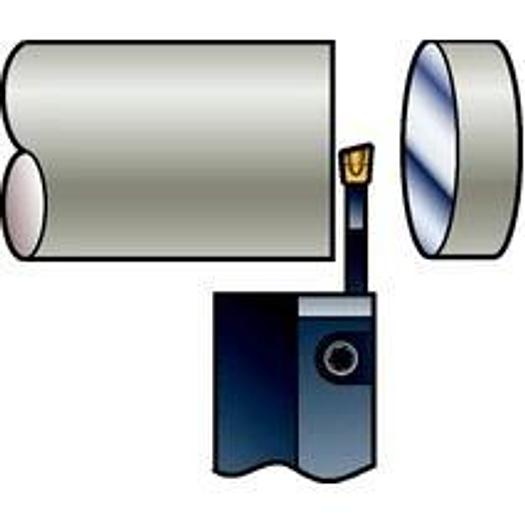

Parting

Parting

$45 (USD)

Location:Germany

Available quantity:99

Description

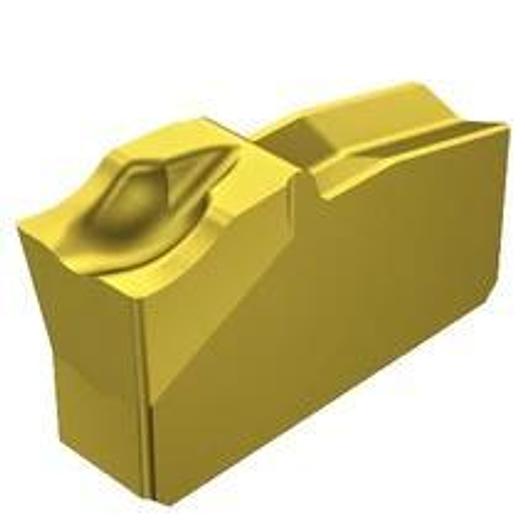

T-Max® Q-Cut parting insert


  • Application Area: TP
  • Coating Process Type: PVD
  • Corner radius, left (REL): 0.2 mm
  • Corner radius, right (RER): 0.2 mm
  • fnx max: 0.17000000000000001mm/r
  • fnx min: 5.0000000000000003E-2 mm/r
  • fnx rec: 5.9999999999999998E-2 mm/r
  • Main clearance angle (AN): 7 deg
  • Manufacturer's item number: N151.2-200-5E 1005
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18000
  • ISO Cutting Tool Material: HC
  • Life Cycle Status (LCS): 20
  • Upper corner radius tolerance (RETOLU): 0.1 mm
  • Upper cutting width tolerance (CWTOLU): 0.25 mm
  • Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 20
  • Cutting direction (HAND): N
  • Grade: 1005
  • Chip breaker, manufacturer's designation (CBMD): 5E
  • Grooving width, nominal dimension (CW): 2 mm
  • Substrate Type: WC
  • TMC Order: 1
  • Lower corner radius tolerance (RETOLL): -0.1 mm
  • vc max: 75 m/min
  • vc min: 75 m/min
  • vc rec: 75 m/min
  • Material classification level 1 (TMC1): S
  • Grooving width nominal dimension C: 2 mm
  • Corner radius right RE: 0.2 °
  • Grade: 1005
  • All ISO application areas: K|S


Specifications

ManufacturerSANDVIK COROMANT
ModelN151.2-200-5E1005
Year2025
ConditionNew
Serial Number520 N151.2-200-5E 1005
