Parting

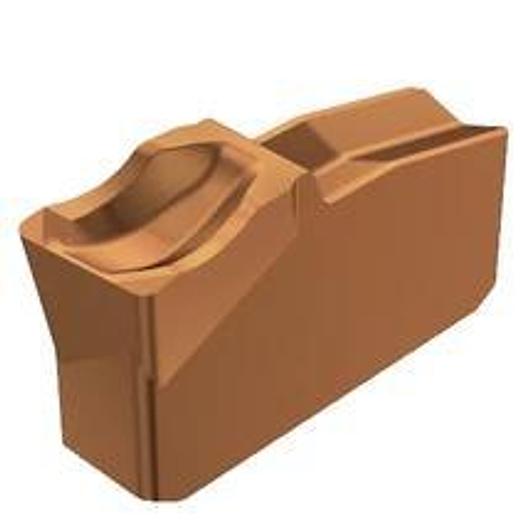

T-Max® Q-Cut parting insert

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.23999999999999999 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 0.12 mm/r
• Main clearance angle (AN): 7 deg
• Main cutting edge angle, left (PSIRL): 5 deg
• Manufacturer item number: L151.2-300 05-4E 1145
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.25 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 30
• Cutting direction (HAND): L
• Grade: 1145
• Chip breaker, manufacturer designation (CBMD): 4E
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 150~185 m/min
• vc min: 110~80 m/min
• vc rec: 105~135 m/min
• Material classification level 1 (TMC1): M~P
• Grooving width nominal dimension C: 3 mm
• Grade: 1145
• Corner radius right RE: 0.3 °
• All ISO application areas: P|M|K|S
