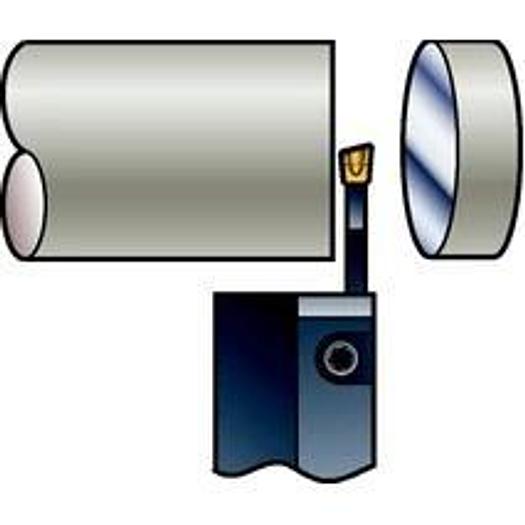

Parting

Parting

$30 (USD)

Location:Germany

Available quantity:99

Description

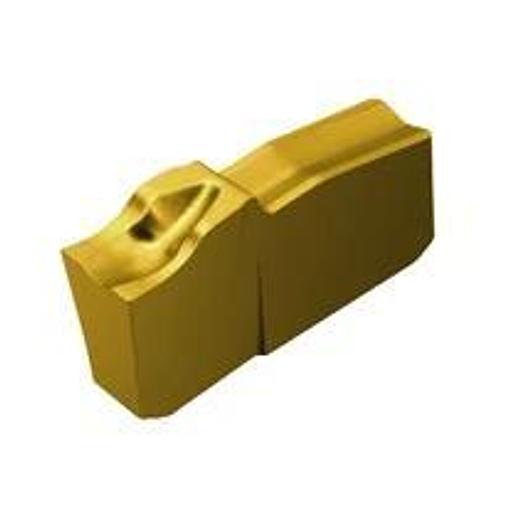

SANDVIK Q-CUT parting inserts 5F


  • Application Area: TP
  • Coating Process Type: CVD
  • Corner radius, left (REL): 0.1 mm
  • fnx max: 0.14999999999999999 mm/r
  • fnx min: 5.0000000000000003E-2 mm/r
  • fnx rec: 8.0000000000000002E-2 mm/r
  • Main clearance angle (AN): 7 deg
  • Main cutting edge angle, right (PSIRR): 8 deg
  • Manufacturer item number: R151.2-300 08-5F 2135
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18000
  • ISO Cutting Tool Material: HC
  • Life Cycle Status (LCS): 20
  • Upper corner radius tolerance (RETOLU): 0.05 mm
  • Upper cutting width tolerance (CWTOLU): 0.2 mm
  • Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 30
  • Cutting direction (HAND): R
  • Grade: 2135
  • Chip breaker, manufacturer's designation (CBMD): 5F
  • Grooving width, nominal dimension (CW): 3 mm
  • Substrate Type: WC
  • TMC Order: 1
  • Lower corner radius tolerance (RETOLL): -0.05 mm
  • vc max: 150 m/min
  • vc min: 100 m/min
  • vc rec: 115 m/min
  • Material classification level 1 (TMC1): M
  • Grooving width nominal dimension C: 3 mm
  • Grade: 2135
  • All ISO application areas: P|M|K|S


Specifications

ManufacturerSANDVIK COROMANT
ModelR151.2-30008-5F2135
Year2025
ConditionNew
Serial Number520 R151.2-300 08-5F 2135
Stock Number.
