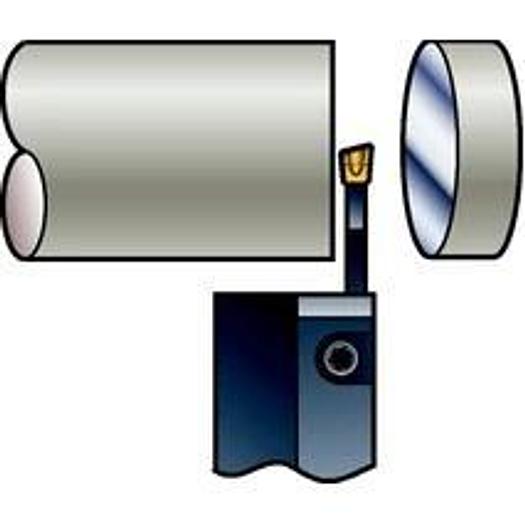

Parting

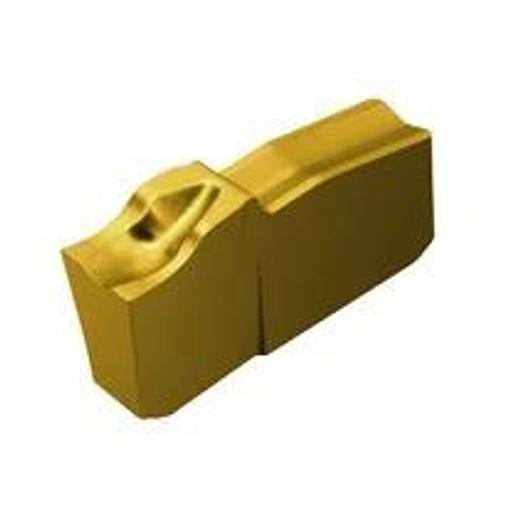

SANDVIK Q-CUT parting inserts 5F

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.1 mm
• fnx max: 0.14999999999999999 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 5.9999999999999998E-2 mm/r
• Main clearance angle (AN): 7 deg
• Main cutting edge angle, right (PSIRR): 5 deg
• Manufacturer item number: R151.2-250 05-5F 235
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.2 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 25
• Cutting direction (HAND): R
• Grade: 235
• Chip breaker, manufacturer's designation (CBMD): 5F
• Grooving width, nominal dimension (CW): 2.5 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.05 mm
• vc max: 115~145 m/min
• vc min: 100~125 m/min
• vc rec: 105~135 m/min
• Material classification level 1 (TMC1): M~P
• Grooving width nominal dimension C: 2.5 mm
• Grade: 235
• All ISO application areas: P|M|K|S
