parting

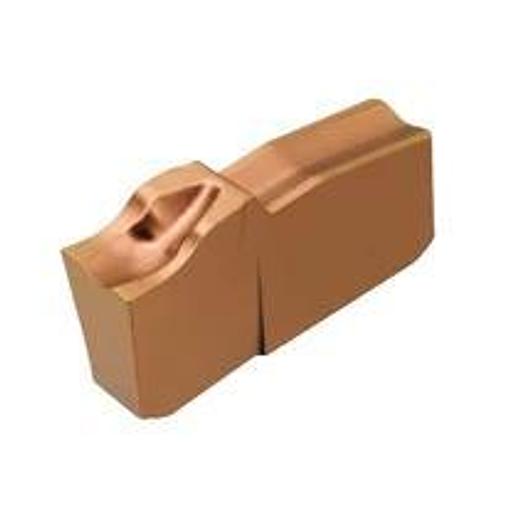

T-Max® Q-Cut parting insert

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, right (RER): 0.1 mm
• fnx max: 0.14999999999999999 mm/r
• fnx min: 2.9999999999999999E-2 mm/r
• fnx rec: 5.9999999999999998E-2 mm/r
• Main clearance angle (AN): 7 deg
• Main cutting edge angle, left (PSIRL): 5 deg
• Manufacturer item number: L151.2-250 05-5F 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.2 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 25
• Cutting direction (HAND): L
• Grade: 1125
• Chip breaker, manufacturer's designation (CBMD): 5F
• Grooving width, nominal dimension (CW): 2.5 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.05 mm
• vc max: 185~230~285~55 m/min
• vc min: 120~135~170~32 m/min
• vc rec: 140~170~210~40 m/min
• Material classification level 1 (TMC1): C~M~P~S
• Grooving width nominal dimension C: 2.5 mm
• Grade: 1125
• Corner radius right RE: 0.1 °
• All ISO application areas: P|M|K|S
