N151.2-500-4E4225

N151.2-500-4E4225

$50 (USD)

Location:Germany

Available quantity:99

Description

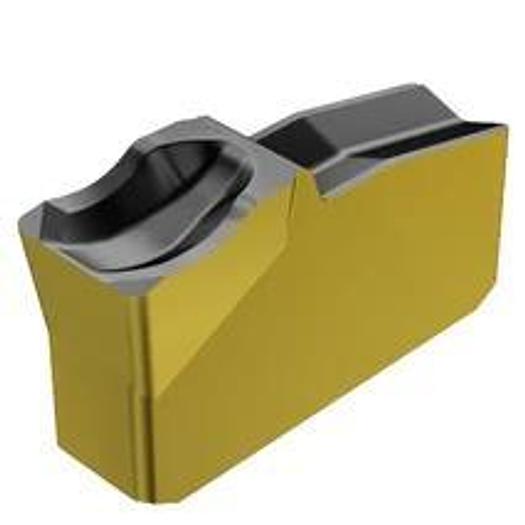

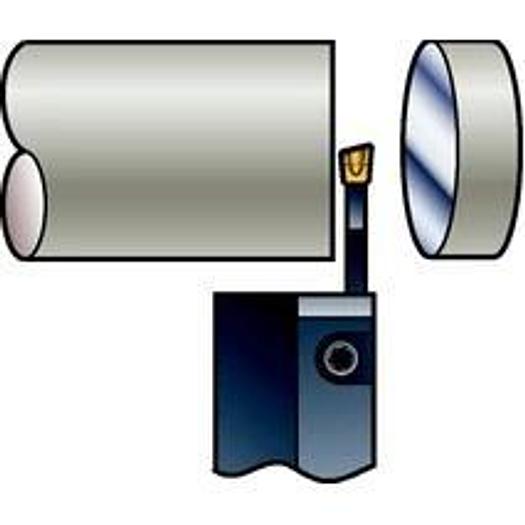

T-Max® Q-Cut parting insert


  • Application Area: TP
  • Coating Process Type: CVD
  • Corner radius, left (REL): 0.4 mm
  • Corner radius, right (RER): 0.4 mm
  • fnx max: 0.34000000000000002mm/r
  • fnx min: 0.10000000000000001~0.11mm/r
  • fnx rec: 0.20000000000000001 mm/r
  • Main clearance angle (AN): 7 deg
  • Manufacturer item number: N151.2-500-4E 4225
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18000
  • ISO Cutting Tool Material: HC
  • Life Cycle Status (LCS): 20
  • Upper corner radius tolerance (RETOLU): 0.1 mm
  • Upper cutting width tolerance (CWTOLU): 0.25 mm
  • Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 50
  • Cutting direction (HAND): N
  • Grade: 4225
  • Chip breaker, manufacturer designation (CBMD): 4E
  • Grooving width, nominal dimension (CW): 5 mm
  • Substrate Type: WC
  • TMC Order: 1~2
  • Lower corner radius tolerance (RETOLL): -0.1 mm
  • vc max: 175~220 m/min
  • vc min: 120~150 m/min
  • vc rec: 140~175 m/min
  • Material classification level 1 (TMC1): K~P
  • Grooving width nominal dimension C: 5 mm
  • Corner radius right RE: 0.4 °
  • Grade: 4225
  • All ISO application areas: P|K


Specifications

ManufacturerSANDVIK COROMANT
ModelN151.2-500-4E4225
Year2025
ConditionNew
Serial Number520 N151.2-500-4E 4225
Stock Number.
