Parting

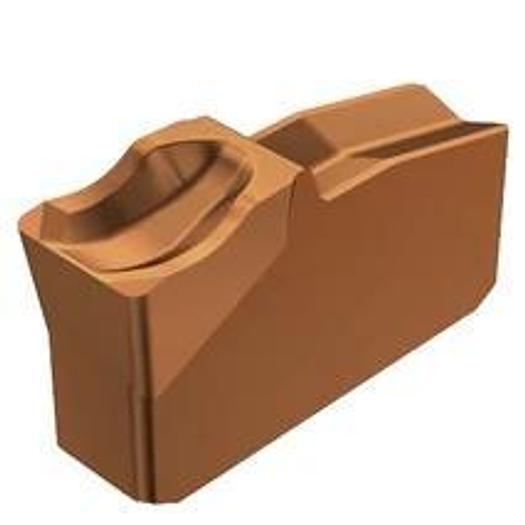

SANDVIK Q-CUT parting inserts 4E

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.34000000000000002mm/r
• fnx min: 0.10000000000000001~0.11mm/r
• fnx rec: 0.20000000000000001 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N151.2-500-4E 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.25 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 50
• Cutting direction (HAND): N
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): 4E
• Grooving width, nominal dimension (CW): 5 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 130~155~185~37 m/min
• vc min: 105~130~25~95 m/min
• vc rec: 105~125~150~29 m/min
• Material classification level 1 (TMC1): C~M~P~S
• Grooving width nominal dimension C: 5 mm
• Corner radius right RE: 0.4 °
• Grade: 1125
• All ISO application areas: P|M|K|S
