$45 (USD)

Location:Germany

Available quantity:99

Description

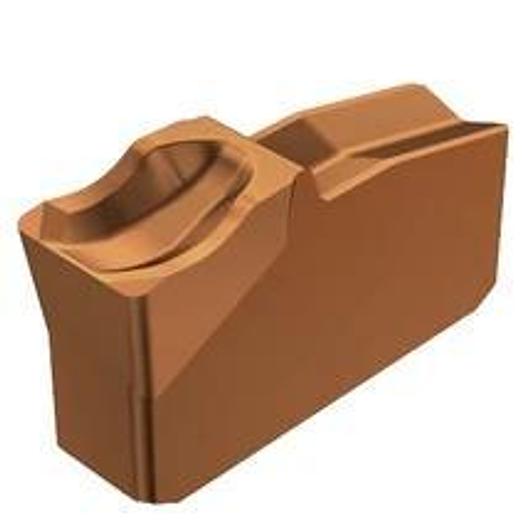

SANDVIK Q-CUT parting inserts 4E


  • Application Area: TP
  • Coating Process Type: PVD
  • Corner radius, left (REL): 0.3 mm
  • Corner radius, right (RER): 0.3 mm
  • fnx max: 0.29999999999999999 mm/r
  • fnx min: 0.10000000000000001 mm/r
  • fnx rec: 0.14999999999999999 mm/r
  • Main clearance angle (AN): 7 deg
  • Manufacturer item number: N151.2-400-4E 1145
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18000
  • ISO Cutting Tool Material: HC
  • Life Cycle Status (LCS): 20
  • Upper corner radius tolerance (RETOLU): 0.1 mm
  • Upper cutting width tolerance (CWTOLU): 0.25 mm
  • Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 40
  • Cutting direction (HAND): N
  • Grade: 1145
  • Chip breaker, manufacturer designation (CBMD): 4E
  • Grooving width, nominal dimension (CW): 4 mm
  • Substrate Type: WC
  • TMC Order: 1~2
  • Lower corner radius tolerance (RETOLL): -0.1 mm
  • vc max: 115~145 m/min
  • vc min: 100~75 m/min
  • vc rec: 115~85 m/min
  • Material classification level 1 (TMC1): M~P
  • Grooving width nominal dimension C: 4 mm
  • Corner radius right RE: 0.3 °
  • Grade: 1145
  • All ISO application areas: P|M|K|S


Specifications

ManufacturerSANDVIK COROMANT
ModelN151.2-400-4E1145
Year2025
ConditionNew
Serial Number520 N151.2-400-4E 1145
Stock Number.
