parting

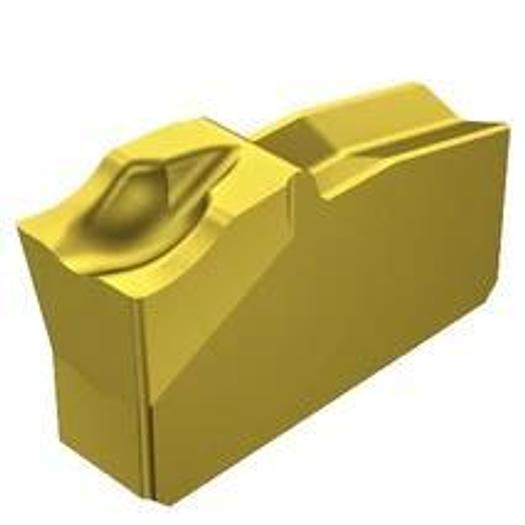

SANDVIK Q-Cut parting insert 5E

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.2 mm
• Corner radius, right (RER): 0.2 mm
• fnx max: 0.25 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 0.12 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's item number: N151.2-400-5E 2135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.25 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Q-Cut 151.2 -size 40
• Cutting direction (HAND): N
• Grade: 2135
• Chip breaker, manufacturer's designation (CBMD): 5E
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 150 m/min
• vc min: 85 m/min
• vc rec: 105 m/min
• Material classification level 1 (TMC1): M
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.2 °
• Grade: 2135
• All ISO application areas: P|M|S
• Variety recommendation: M
