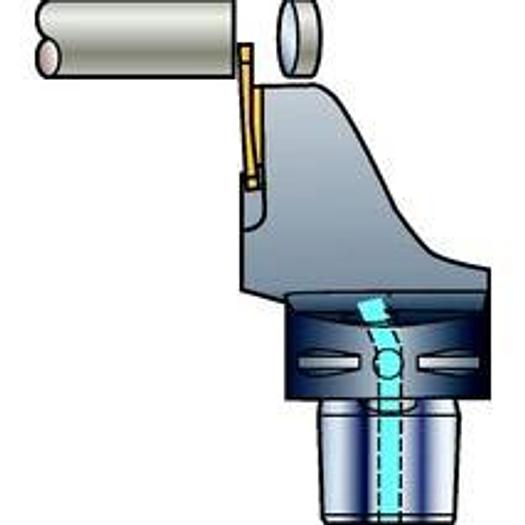

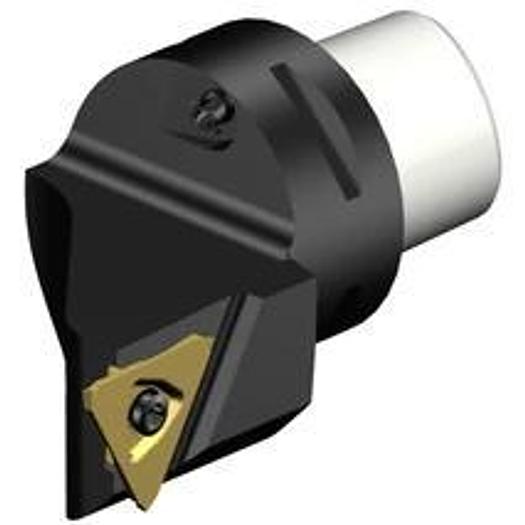

CoroCut 3 Coromant Capto cutting heads

CoroCut® 3 cutting edge system for parting and grooving

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) - size C4
• DCONMS: 40 mm
• Torque (TQ): 3 Nm
• Functional width (WF): 27 mm
• Functional length (LF): 60 mm
• Manufacturer item number: C4-RF123T06-27060BM
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 5: axial inclined exit with nozzle, adjustable
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 60 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 6.35 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 3 -style T (N123T3-CM)
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C4
• Cutting depth max CD: 6.35 mm
• Mounting diameter: 40 mm
• Functional width W: 27 mm
