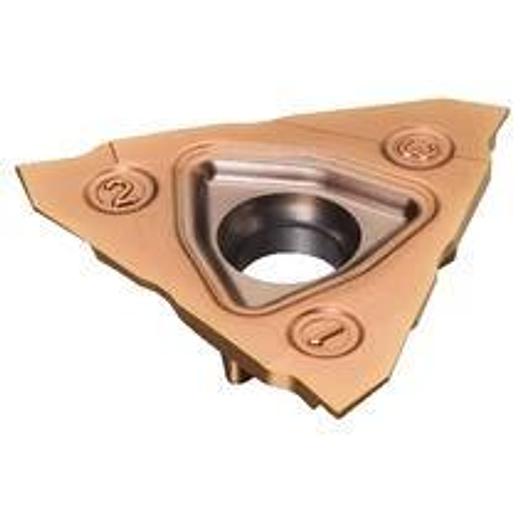

CoroCut 3 inserts - grooving/profiling

CoroCut 3 inserts - grooving/profiling

$90 (USD)

Location:Germany

Available quantity:99

Description

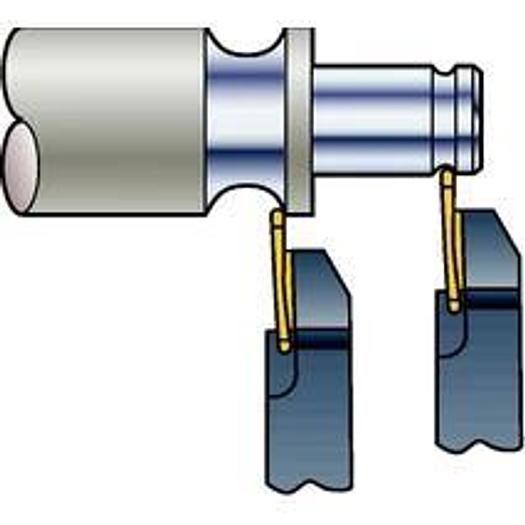

CoroCut® 3 cutting edge system for form turning


  • Application Area: TP
  • Coating Process Type: PVD
  • Corner radius (RE): 0.25 mm
  • fnx max: 8.0000000000000002E-2mm/r
  • fnx min: 0.02 mm/r
  • fnx rec: 4.0000000000000001E-2 mm/r
  • fnz max: 0.13 mm
  • fnz min: 2.9999999999999999E-2 mm
  • fnz rec: 8.0000000000000002E-2mm
  • Main clearance angle (AN): 7 deg
  • Manufacturer No.: N123T3-0050-RS 1125
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18000
  • ISO Cutting Tool Material: HC
  • Life Cycle Status (LCS): 20
  • Upper corner radius tolerance (RETOLU): 0.05 mm
  • Upper cutting width tolerance (CWTOLU): 0.02 mm
  • Cutting length, max. (APMX): 0.3 mm
  • Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 3 -style T
  • Cutting direction (HAND): N
  • Cutting depth, max. (CDX): 1.5 mm
  • Grade: 1125
  • Chip breaker, manufacturer designation (CBMD): RS
  • Grooving width, nominal dimension (CW): 0.5 mm
  • Substrate Type: WC
  • TMC Order: 1~2~3
  • Lower corner radius tolerance (RETOLL): -0.05 mm
  • Lower cutting width tolerance (CWTOLL): -0.02 mm
  • vc max: 1900~260~325 m/min
  • vc min: 170~190~210 m/min
  • vc rec: 1500~200~245 m/min
  • Material classification level 1 (TMC1): M~N~P
  • Corner radius R: 0.25 mm
  • Chip breaker manufacturer designation CBM: RS
  • Grade: 1125
  • All ISO application areas: P|M|K|N|S
  • Recommended varieties: P|M|K|N|S


Specifications

ManufacturerSANDVIK COROMANT
ModelN123T3-0050-RS1125
Year2025
ConditionNew
Serial Number520 N123T3-0050-RS 1125
Stock Number.
