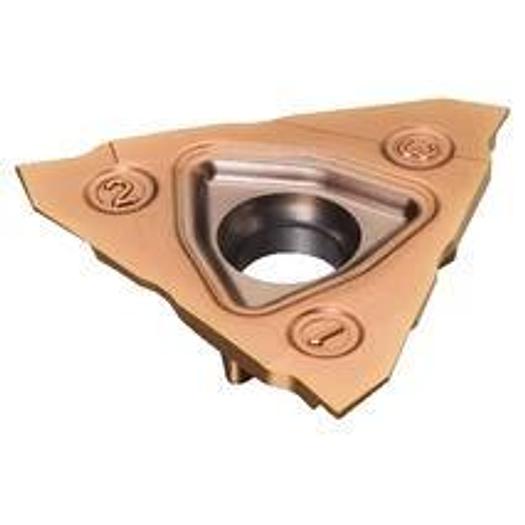

CoroCut 3 inserts - grooving/profiling

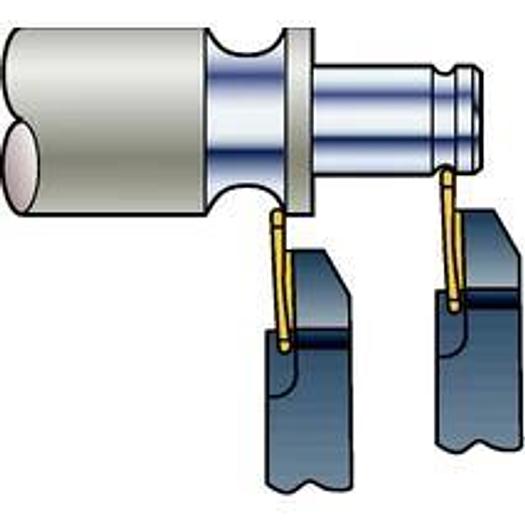

CoroCut® 3 cutting edge system for form turning

• Application Area: TP
• Coating Process Type: PVD
• Corner radius (RE): 1.25 mm
• fnx max: 0.17999999999999999 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 8.9999999999999997E-2 mm/r
• fnz max: 0.20999999999999999 mm
• fnz min: 5.9999999999999998E-2 mm
• fnz rec: 0.14000000000000001 mm
• Main clearance angle (AN): 7 deg
• Manufacturer No.: N123T3-0250-RS 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting length, max. (APMX): 1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 3 -style T
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 5 mm
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): RS
• Grooving width, nominal dimension (CW): 2.5 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 1900~195~240 m/min
• vc min: 130~160~190 m/min
• vc rec: 150~1500~185 m/min
• Material classification level 1 (TMC1): M~N~P
• Corner radius R: 1.25 mm
• Chip breaker manufacturer designation CBM: RS
• Grade: 1125
• All ISO application areas: P|M|K|N|S
• Recommended varieties: P|M|K|N|S
