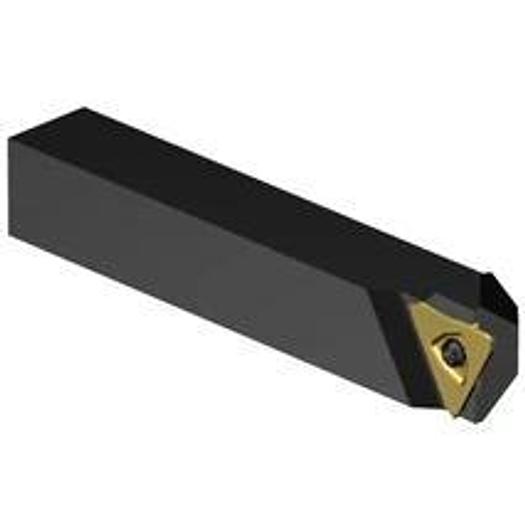

CoroCut 3 shank tool

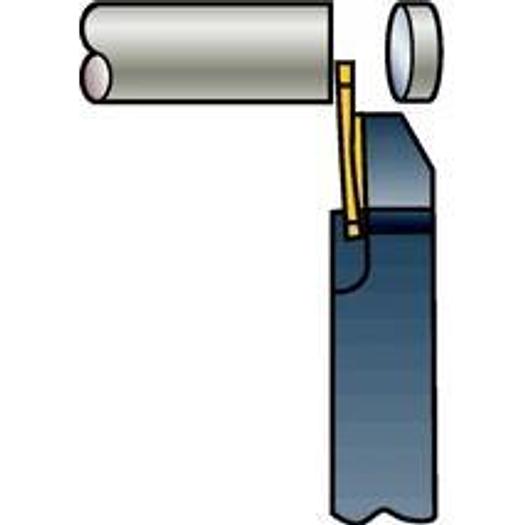

CoroCut® 3 shank tool for parting and grooving

• Adapter interface machine direction (ADINTMS): Rectangular shank - metric: 20 x 20
• Torque (TQ): 3 Nm
• Functional width (WF): 20 mm
• Functional height (HF): 20 mm
• Functional length (LF): 125 mm
• Manufacturer No.: LF123U06-2020BM
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant outlet (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 23,012 mm
• Shaft width (B): 20 mm
• Shaft height (H): 20 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 6.4 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 3 -style U (N123U3-CM)
• Functional width W: 20 mm
• Adapter interface machine direction ADINTM: Rectangular shank -metric: 20 x 20
• Functional length L: 125 mm
