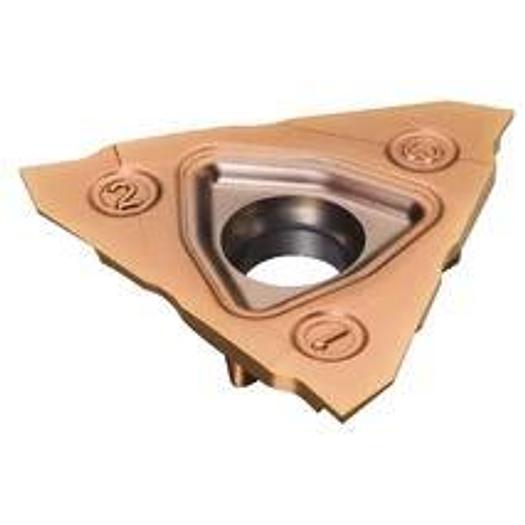

CoroCut 3 inserts - grooving

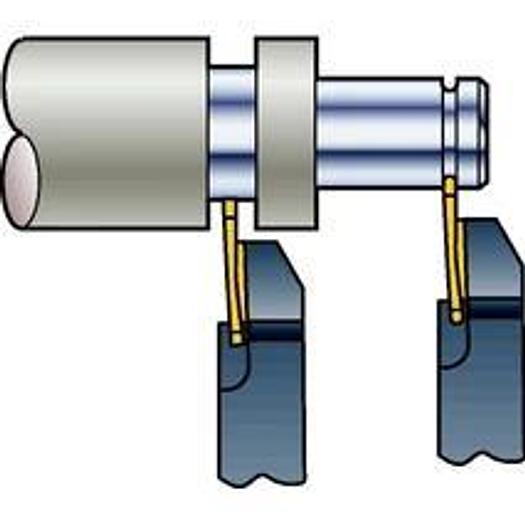

CoroCut® 3 cutting edge system for grooving

• Application Area: TP
• Coating Process Type: PVD
• fnx max: 8.0000000000000002E-2mm/r
• fnx min: 0.02 mm/r
• fnx rec: 4.0000000000000001E-2 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123T3-0090-0000-GS 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.02 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 3 -style T
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 2 mm
• Grade: 1125
• Chip breaker, manufacturer's designation (CBMD): GS
• Grooving width, nominal dimension (CW): 0.9 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower cutting width tolerance (CWTOLL): -0.02 mm
• vc max: 1900~260~325 m/min
• vc min: 170~190~210 m/min
• vc rec: 1500~200~245 m/min
• Material classification level 1 (TMC1): M~N~P
• Grooving width nominal dimension C: 0.9 mm
• Grade: 1125
• All ISO application areas: P|M|K|N|S
• Recommended variety: P|M|K|N|S
