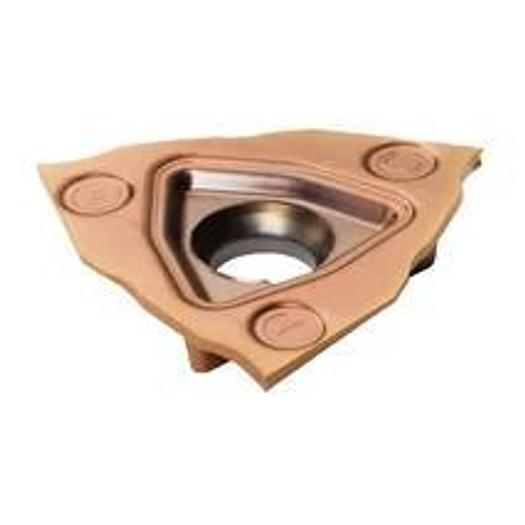

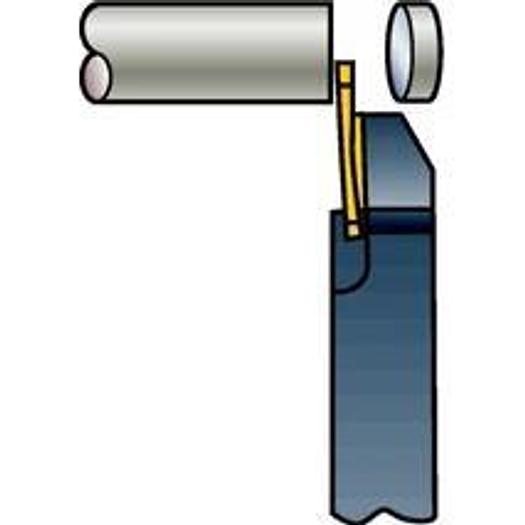

CoroCut 3 inserts - parting off

SANDVIK COROCUT parting inserts -GS

• Application Area: TP
• Coating Process Type: PVD
• fnx max: 0.14999999999999999 mm/r
• fnx min: 0.02~2.9999999999999999E-2mm/r
• fnx rec: 5.0000000000000003E-2 mm/r
• Main clearance angle (AN): 7 deg
• Main cutting edge angle, right (PSIRR): 10 deg
• Manufacturer item number: R123U3-0200-1000-CS 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 3 -style U
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 6.3 mm
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): CS
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower cutting width tolerance (CWTOLL): -0.1 mm
• vc max: 1900~260~300~60 m/min
• vc min: 135~170~190~32 m/min
• vc rec: 1500~180~215~40 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Grooving width nominal dimension C: 2 mm
• Grade: 1125
• Recommended variety: P|M|K|N|S
• All ISO application areas: P|M|K|N|S
