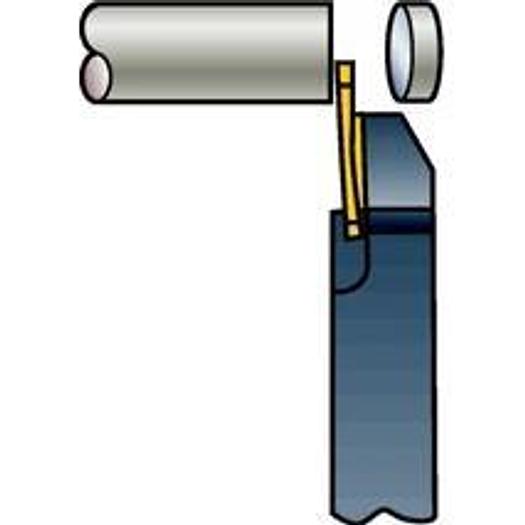

CoroCut 3 inserts - parting off

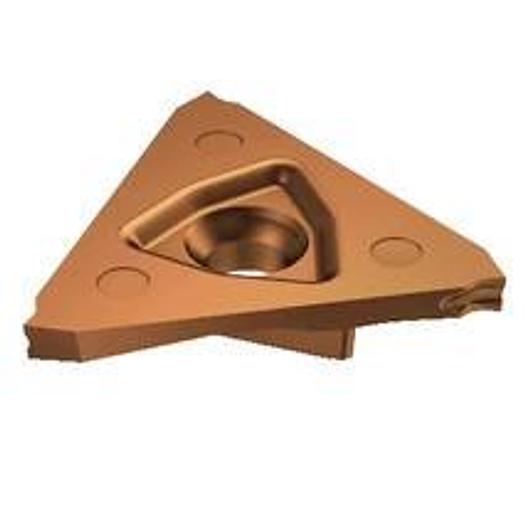

SANDVIK COROCUT 3 parting inserts -CM

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.1 mm
• Corner radius, right (RER): 0.1 mm
• fnx max: 0.12~0.13 mm/r
• fnx min: 0.02~2.9999999999999999E-2~4.0000000000000001E-2mm/r
• fnx rec: 5.0000000000000003E-2~5.99999999999999998E-2mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123U3-0150-0001-CM 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.03 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 3 -style U
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 6.4 mm
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): CM
• Grooving width, nominal dimension (CW): 1.5 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.03 mm
• vc max: 1900~210~325~50 m/min
• vc min: 150~180~190~35 m/min
• vc rec: 1500~170~225~40 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Grooving width nominal dimension C: 1.5 mm
• Corner radius right RE: 0.1 °
• Grade: 1125
• All ISO application areas: P|M|K|N|S
• Recommended variety: P|M|K|N|S
