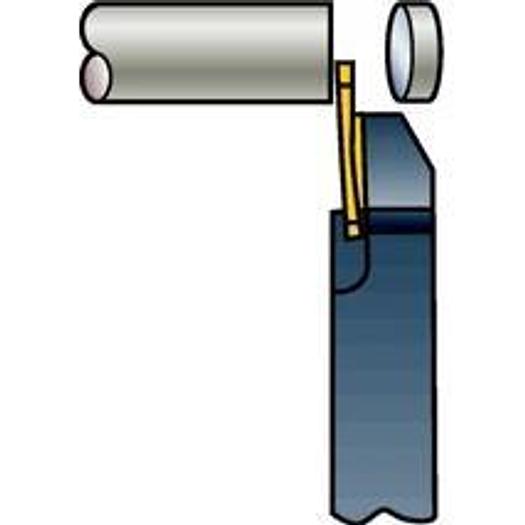

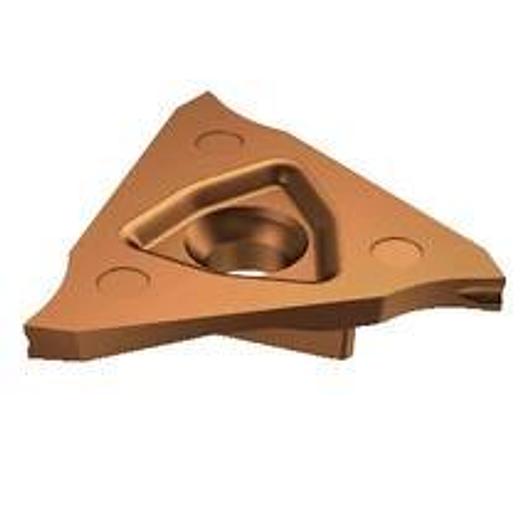

CoroCut 3 inserts - parting off

CoroCut® 3 cutting system for parting off

• Application Area: TP
• Coating Process Type: PVD
• fnx max: 0.10000000000000001 mm/r
• fnx min: 0.02 mm/r
• fnx rec: 5.0000000000000003E-2 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: N123T3-0100-0000-CS 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.03 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 3 -style T
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 4.3 mm
• Grade: 1125
• Chip breaker, manufacturer designation (CBMD): CS
• Grooving width, nominal dimension (CW): 1 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• vc max: 1900~260~300~60 m/min
• vc min: 155~190~195~37 m/min
• vc rec: 1500~190~230~45 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Grooving width nominal dimension C: 1 mm
• Grade: 1125
• All ISO application areas: P|M|K|N|S
• Recommended variety: P|M|K|N|S
