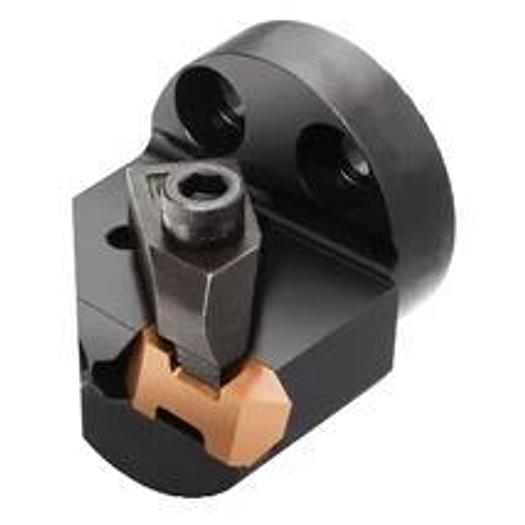

TopLock cutting head

Top-Lok cutting head for piercing

• Adapter interface machine direction (ADINTMS): SL head (screw mounted) -size 20
• DCONMS: 20 mm
• Functional width (WF): 16.9926 mm
• Functional length (LF): 25 mm
• Manufacturer's ArtNo: 570C-TLER-20-2
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Body diameter (BD): 20 mm
• Body angle, workpiece side (BAWS): 90 deg
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 8: decentral over slots on the shank
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 25 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 2.8 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Top-Lok -style 2L (TLG2L)
• Adapter interface machine direction ADINTM: SL head (screw mounted) -size 20
• Cutting depth max CD: 2.8 mm
• Mounting diameter: 20 mm
• Functional width W: 16.9926 mm
