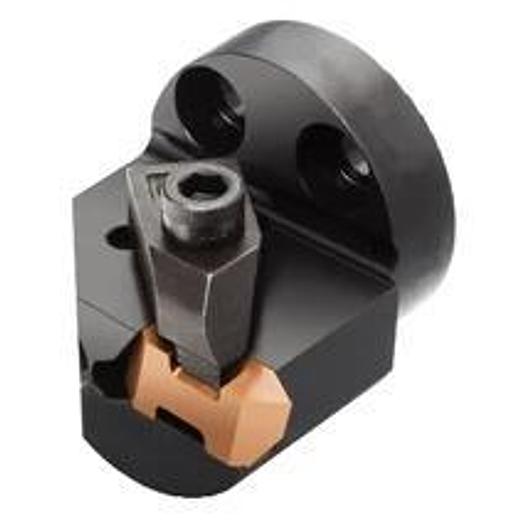

TopLock cutting head

Top-Lok cutting head for piercing

• Adapter interface machine direction (ADINTMS): SL head (screw mounted) -size 32
• DCONMS: 32 mm
• Functional width (WF): 21.9964 mm
• Functional length (LF): 34 mm
• Manufacturer's ArtNo: 570C-TLEL-32-3
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Body diameter (BD): 32 mm
• Body angle, workpiece side (BAWS): 90 deg
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 34 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 4.8 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Top-Lok -style 3R (TLG3R)
• Adapter interface machine direction ADINTM: SL head (screw mounted) -size 32
• Cutting depth max CD: 4.8 mm
• Mounting diameter: 32 mm
• Functional width W: 21.9964 mm
