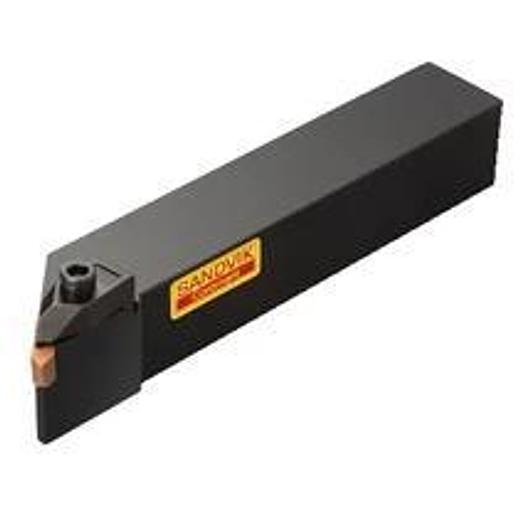

TopLock shaft holder

Top-Lok shank tool for parting and grooving

• Adapter interface machine direction(ADINTMS): Rectangular shank -inch: 1 x 1
• Setting angle (KAPR): 135 deg
• Immersion angle, max.(RMPX): 45 deg
• Functional width (WF): 31.75 mm
• Functional length (LF): 152.4 mm
• Main cutting edge angle (PSIR): -45 deg
• Manufacturer's item number: TLRL-163D
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 31.75 mm
• Shaft width (B): 25.4 mm
• Shaft height (H): 25.4 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 4.8 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Top-Lok -style 3R (TLU3R)
• Tool design (BMC): Steel
• Adapter interface Machine direction ADINTM: Rectangular shank -inch: 1 x 1
• Part_2 of the identifiers for the cutting part interface_CUTIN: Top-Lok -style 3R (TLU3R)
• Maximum cantilever length OH: 31.75 mm
