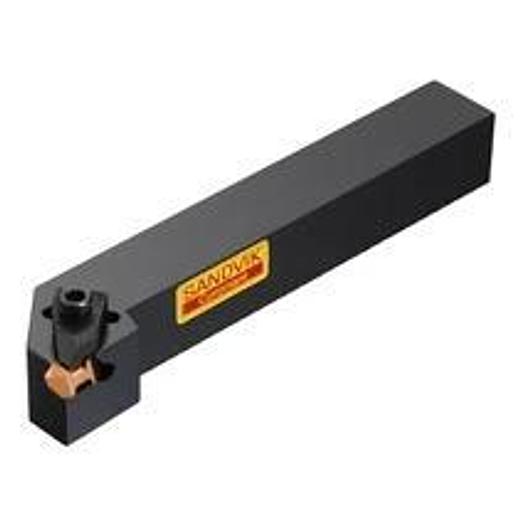

TopLock shaft holder

Top-Lok shank tool for parting and grooving

• Adapter interface machine direction(ADINTMS): Rectangular shank -inch: 3/4 x 3/4
• Functional width (WF): 25.4 mm
• Functional length (LF): 114.3 mm
• Manufacturer's ArtNo: TLSR-122B
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 22,352 mm
• Shaft width (B): 19.05 mm
• Shaft height (H): 19.05 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 3,175 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Top-Lok -style 2R (TLG2R)
• Functional width W: 25.4 mm
• Adapter interface machine direction ADINTM: Rectangular shank -inch: 3/4 x 3/4
• Functional length L: 114.3 mm
