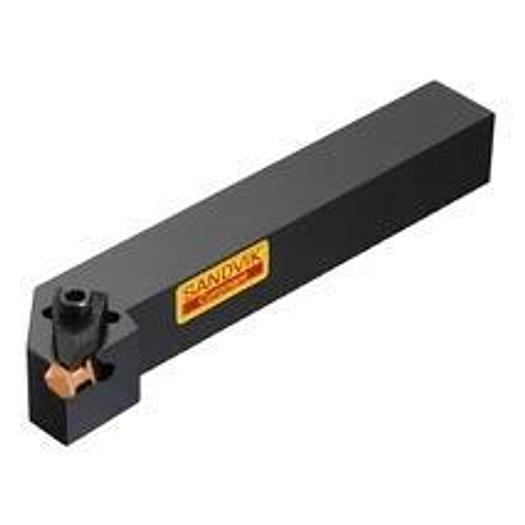

TopLock shaft holder

Top-Lok shank tool for parting and grooving

• Adapter interface machine direction(ADINTMS): Rectangular shank -inch: 1 1/4 x 1 1/4
• Functional width (WF): 38.1 mm
• Functional length (LF): 152.4 mm
• Manufacturer's ArtNo: TLSL-203D
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 33.02 mm
• Shaft width (B): 31.75 mm
• Shaft height (H): 31.75 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 4,572 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Top-Lok -style 3L (TLG3L)
• Functional width W: 38.1 mm
• Adapter interface machine direction ADINTM: Rectangular shank -inch: 1 1/4 x 1 1/4
• Functional length L: 152.4 mm
