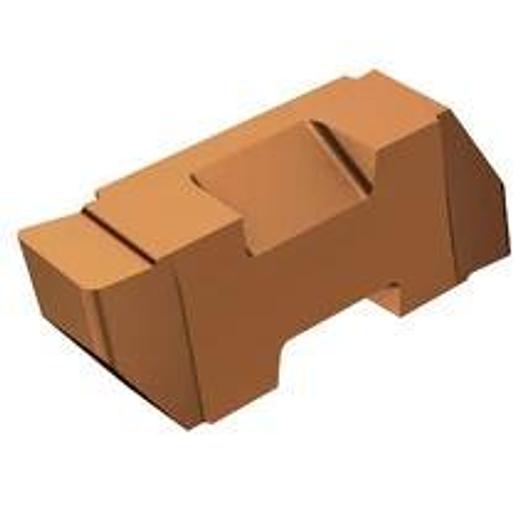

TopLock cutting plates

TopLock cutting plates

$150 (USD)

Location:Germany

Available quantity:99

Description

Top-Lok indexable insert for grooving


  • Coating Process Type: PVD
  • Corner radius, left (REL): 0.1905 mm
  • Corner radius, right (RER): 0.1905 mm
  • Main clearance angle (AN): 10 deg
  • Manufacturer's ArtNo: TLGP-3125L 1125
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18000
  • ISO Cutting Tool Material: HC
  • Life Cycle Status (LCS): 20
  • Upper cutting width tolerance (CWTOLU): 0.0254 mm
  • Cutting insert size and shape (CUTINT_SIZESHAPE): Top-Lok -style 3L
  • Cutting direction (HAND): L
  • Cutting depth, max. (CDX): 3.81 mm
  • Grade: 1125
  • Grooving width, nominal dimension (CW): 3.175 mm
  • Substrate Type: WC
  • Lower cutting width tolerance (CWTOLL): -0.0254 mm
  • Grooving width nominal dimension C: 3.175 mm
  • Grade: 1125
  • Corner radius right RE: 0.1905 °
  • All ISO application areas: P|M|K|S


Specifications

ManufacturerSANDVIK COROMANT
ModelTLGP3125L1125
Year2025
ConditionNew
Serial Number520 TLGP-3125L 1125
Stock Number.
