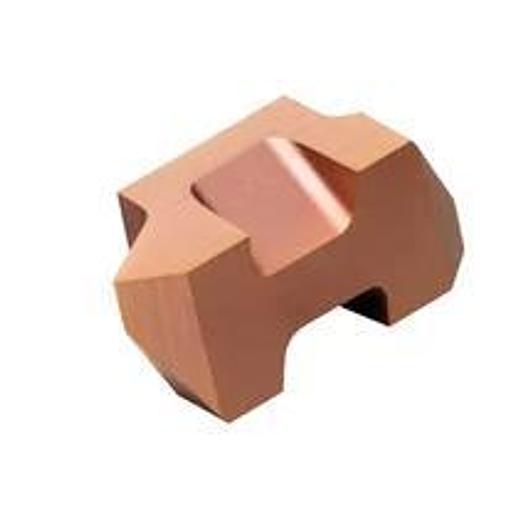

TopLock cutting plates

Top-Lok indexable insert for thread turning

• Coating Process Type: PVD
• Corner radius (RE): 0.165 mm
• Number of gears per inch, max. (TPIX): 20
• Number of gears per inch, min. (TPIN): 5
• Thread type (THFT): VP60

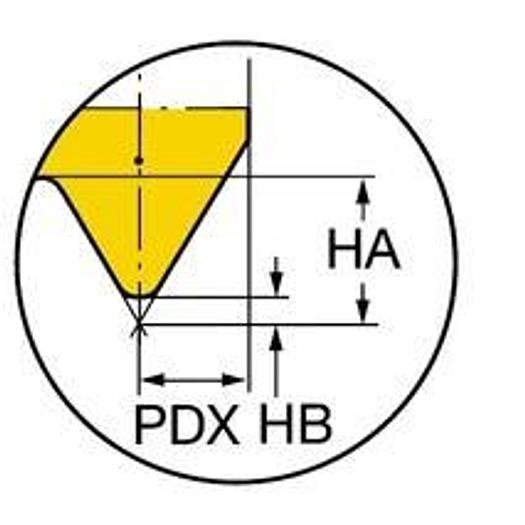

• Thread height, theoretical (HA): 3.76 mm
• Thread cutting part, application (TTP): EXT_INT
• Thread pitch, max. (TPX): 5 mm
• Thread pitch, min.(TPN): 1.25 mm
• Manufacturer's ArtNo: TLTP-3R 1125
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Profile spacing X(PDX): 2.49 mm
• Cutting profile type (TPT): P
• Cutting edge height (S): 8.7376 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): Top-Lok -style 3R
• Cutting direction (HAND): R
• Grade: 1125
• Substrate Type: WC
• Number of teeth (NT): 1
• Thread type THF: VP60
• Cutting edge height: 8.7376 mm
• All ISO application areas: P|M|K|S
