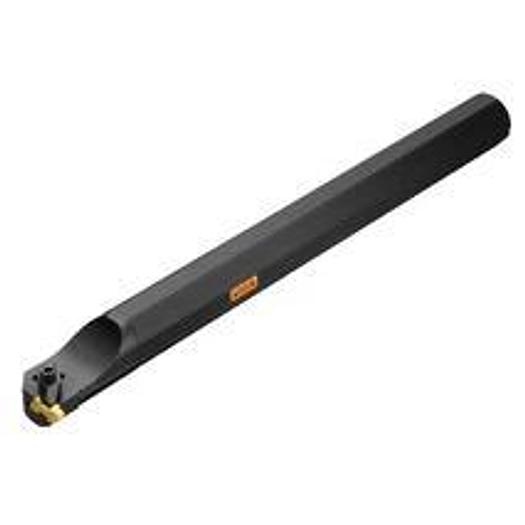

TopLock drill rods

Top-Lok boring bar for grooving

• Adapter interface machine direction(ADINTMS): Cylindrical shank w/ 3 flats -inch: 1 1/2
• Bore diameter, min.(DMIN1): 50.8 mm
• DCONMS: 38.1 mm
• Functional width (WF): 25.4 mm
• Functional length (LF): 355.0412 mm
• Manufacturer's ArtNo: SI-CTLHOR-12143
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body diameter (BD): 38.1 mm
• Body angle, workpiece side (BAWS): 90 deg
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 95.25 mm
• Minimum cantilever length (OHN): 59.75 mm
• Shaft height (H): 37.084 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 4.8 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Top-Lok -style 3L (TLG3L)
• Adapter interface machine direction ADINTM: Cylindrical shank w/ 3 flats -inch: 1 1/2
• Mounting diameter: 38.1 mm
• Part_2 of the identifiers for the cutting part interface_CUTIN: Top-Lok -style 3L (TLG3L)
