U-Lock

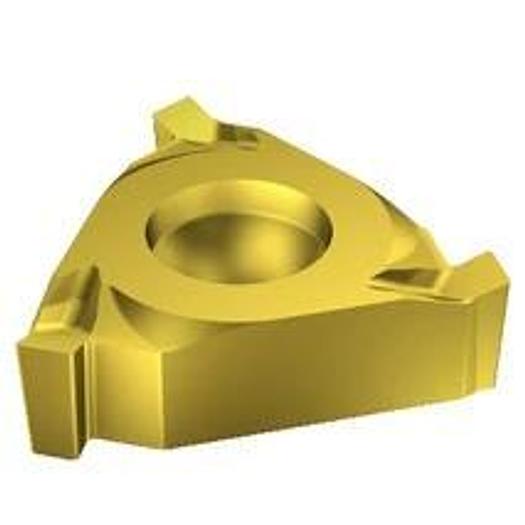

SANDVIK U-LOCK groove turning inserts 154.0G

• Coating Process Type: PVD
• Corner radius, left (REL): 0.08 mm
• Corner radius, right (RER): 0.08 mm
• Manufacturer item number: L154.0G-11CC01-110 1020
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.02 mm
• Upper cutting width tolerance (CWTOLU): 0.13 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): U-Lock 166/154 -circlip size 11L
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 0.7 mm
• Grade: 1020
• Chip breaker, manufacturer designation (CBMD): CC
• Grooving width, nominal dimension (CW): 1.1 mm
• Substrate Type: WC
• Lower corner radius tolerance (RETOLL): -0.02 mm
• Lower cutting width tolerance (CWTOLL): 0.05 mm
• Grooving width nominal dimension C: 1.1 mm
• Corner radius right RE: 0.08 °
• Grade: 1020
• All ISO application areas: P|M|K|N|S|H
