CoroCut QD shank tools - inch version

CoroCut QD shank tools - inch version

$685 (USD)

Location:Germany

Available quantity:99

Description

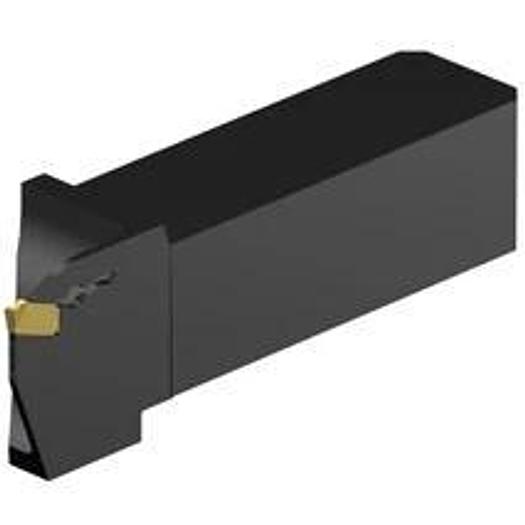

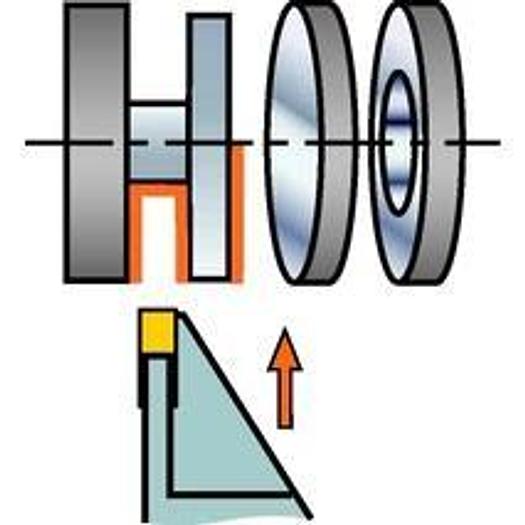

CoroCut® QD QS shank tool for parting and grooving


  • Cutting diameter (CUTDIA): 50.8 mm
  • Adapter interface machine direction(ADINTMS): Rectangular shank -inch: 1 x 1
  • Functional width (WF): 25.9 mm
  • Functional height (HF): 25.4 mm
  • Functional length (LF): 111 mm
  • Manufacturer's ArtNo: QS-QD-RFE1000C16D
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 14000
  • Coolant pressure (CP): 150 bar
  • Coolant outlet (CXSC): 1: axial concentric exit
  • Coolant inlet (CNSC): 3: axial concentric and radial entry
  • Coolant inlet, thread size (CNT): G 1/8-28
  • Life Cycle Status (LCS): 20
  • Maximum overhang length (OHX): 52.4 mm
  • Minimum cantilever length (OHN): 27 mm
  • Shaft width (B): 25.4 mm
  • Shaft height (H): 25.4 mm
  • Cutting direction (HAND): R
  • Cutting depth, max. (CDX): 25.4 mm
  • Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size E (QD-NE-0200-0002-CM)
  • Functional width W: 25.9 mm
  • Adapter interface Machine direction ADINTM: Rectangular shank -inch: 1 x 1
  • Functional length L: 111 mm


Specifications

ManufacturerSANDVIK COROMANT
ModelQS-QD-RFE1000C16D
Year2025
ConditionNew
Serial Number520 QS-QD-RFE1000C16D
Stock Number.
