CoroCut QD shank tools - inch version

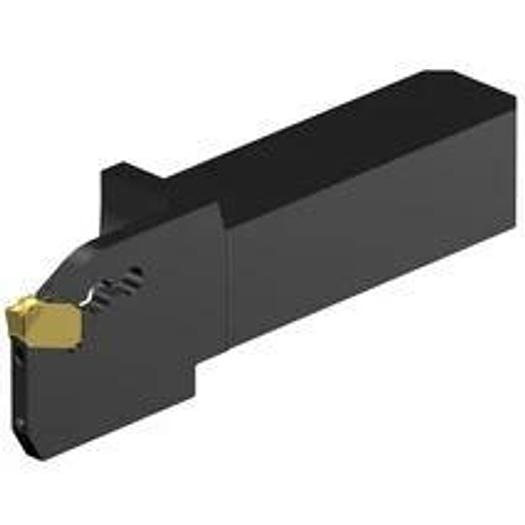

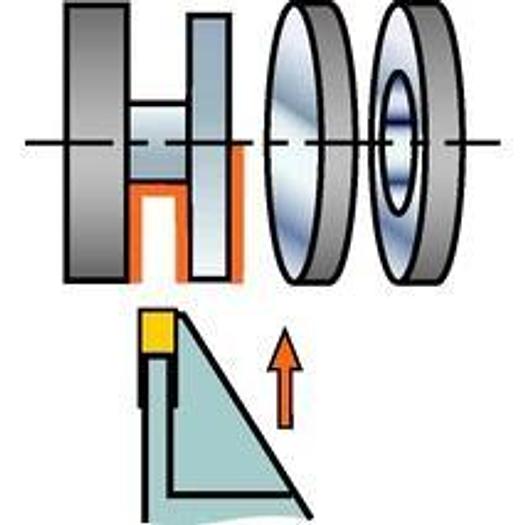

CoroCut® QD QS shank tool for parting and grooving

• Parting diameter (CUTDIA): 66.04 mm
• Adapter interface machine direction(ADINTMS): Rectangular shank -inch: 3/4 x 3/4
• Functional width (WF): 19.55 mm
• Functional height (HF): 19.05 mm
• Functional length (LF): 103.6 mm
• Manufacturer's article number: QS-QD-RFH1300C12D
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant pressure (CP): 150 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Coolant inlet, thread size (CNT): G 1/8-28
• Life Cycle Status (LCS): 20
• Maximum overhang length (OHX): 53.6 mm
• Minimum cantilever length (OHN): 34.6 mm
• Shaft width (B): 19.05 mm
• Shaft height (H): 19.05 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 33.02 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size H (QD-NH-0400-0002-CM)
• Functional width W: 19.55 mm
• Adapter interface machine direction ADINTM: Rectangular shank -inch: 3/4 x 3/4
• Functional length L: 103.6 mm
