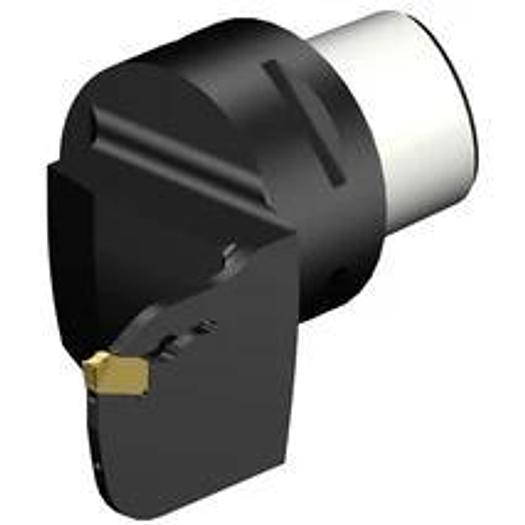

CoroCut QD cutting heads for parting and grooving

CoroCut QD cutting heads for parting and grooving

$950 (USD)

Location:Germany

Available quantity:99

Description

SANDVIK CC-COROCUT QD with HP


  • Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C4
  • Bore diameter, min.(DMIN2): 151 mm
  • DCONMS: 40 mm
  • Functional width (WF): 27 mm
  • Functional length (LF): 60 mm
  • Manufacturer item number: C4-QD-RFF25C27060A
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 14000
  • Coolant pressure (CP): 150 bar
  • Coolant outlet (CXSC): 3: axial inclined exit
  • Coolant inlet (CNSC): 3: axial concentric and radial entry
  • Life Cycle Status (LCS): 20
  • Maximum cantilever length (OHX): 60 mm
  • Minimum cantilever length (OHN): 60 mm
  • Cutting direction (HAND): R
  • Cutting depth, max. (CDX): 25 mm
  • Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size F (QD-NF-0250-0002-CM)
  • Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C4
  • Cutting depth max CD: 25 mm
  • Mounting diameter: 40 mm
  • Functional width W: 27 mm


Specifications

ManufacturerSANDVIK COROMANT
ModelC4-QD-RFF25C27060A
Year2025
ConditionNew
Serial Number520 C4-QD-RFF25C27060A
Stock Number.
