CoroCut QD Shank Tools - Metric Version

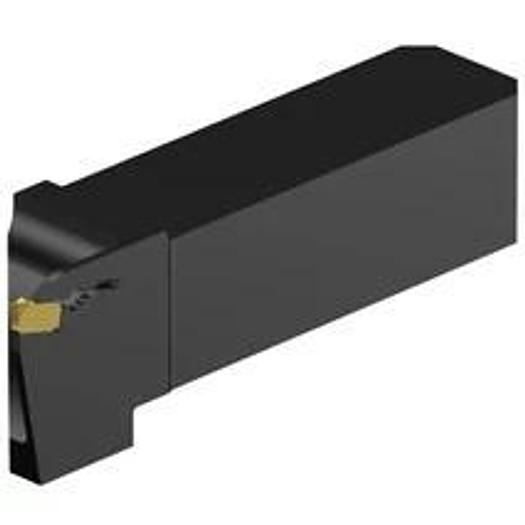

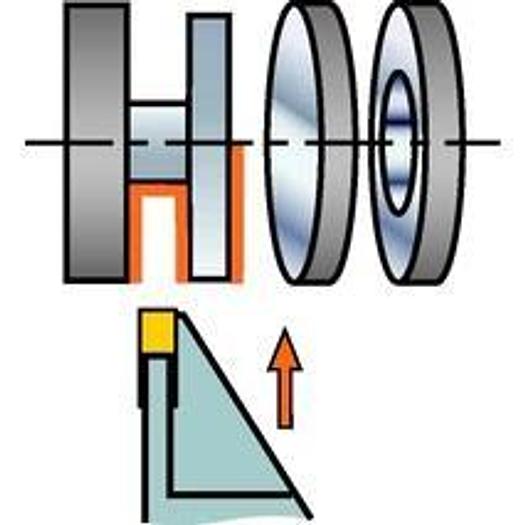

CoroCut® QD QS shank tool for parting and grooving

• Cutting diameter (CUTDIA): 32 mm
• Adapter interface machine direction (ADINTMS): Rectangular shank -metric: 20 x 20
• Functional width (WF): 20 mm
• Functional height (HF): 20 mm
• Functional length (LF): 88.7 mm
• Manufacturer's ArtNo: QS-QD-RFD16C2020D
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant pressure (CP): 150 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Coolant inlet, thread size (CNT): G 1/8-28
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 45 mm
• Minimum cantilever length (OHN): 25 mm
• Shaft width (B): 20 mm
• Shaft height (H): 20 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 16 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size D (QD-ND-0150-0001-CM)
• Functional width W: 20 mm
• Adapter interface machine direction ADINTM: Rectangular shank -metric: 20 x 20
• Functional length L: 88.7 mm
