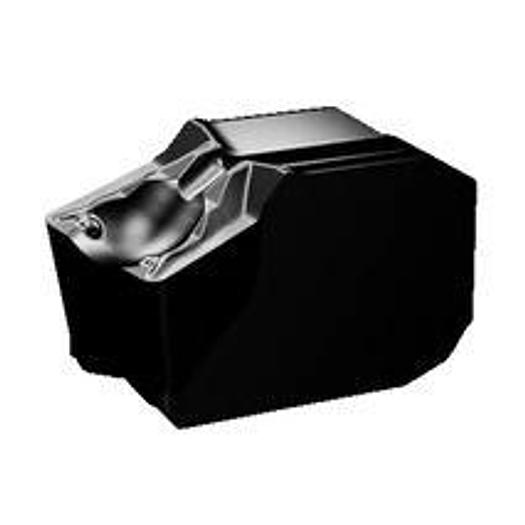

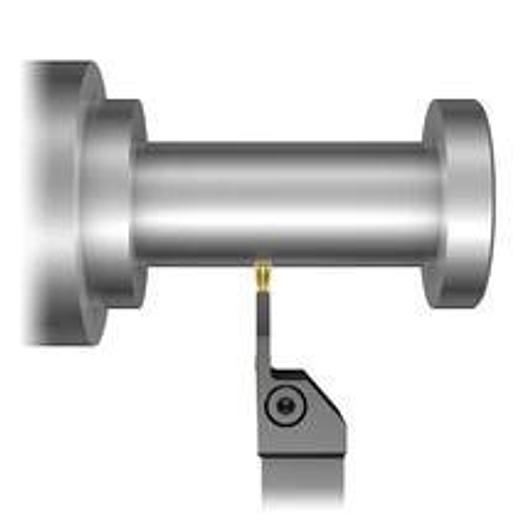

CoroCut QD indexable inserts for longitudinal turning

SANDVIK inserts COROCUT QD -LF

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.14000000000000001 mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 0.10000000000000001 mm/r
• fnz max: 0.23000000000000001 mm
• fnz min: 5.0000000000000003E-2 mm
• fnz rec: 0.13 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: QD-NG-0300-0003-TF 1105
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting length, max. (APMX): 2.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut QD -size G
• Cutting direction (HAND): N
• Grade: 1105
• Chip breaker, manufacturer designation (CBMD): TF
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• vc max: 245~80 m/min
• vc min: 175~80 m/min
• vc rec: 200~80 m/min
• Material classification level 1(TMC1): M~S
• Grooving width nominal dimension C: 3 mm
• Corner radius right RE: 0.3 °
• Grade: 1105
• All ISO application areas: M|N|S
