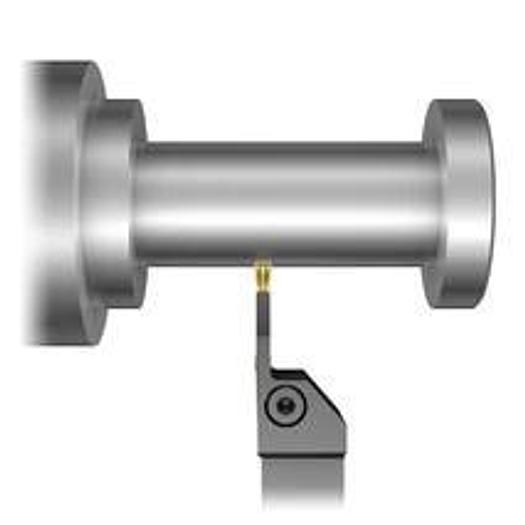

CoroCut QD indexable inserts for longitudinal turning

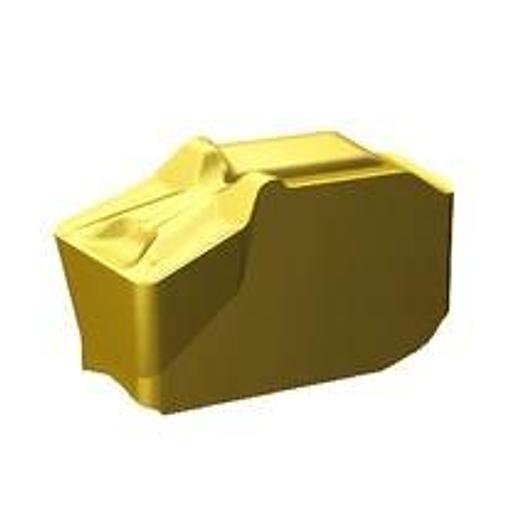

SANDVIK CoroCut Q indexable insert for turning

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.8 mm
• Corner radius, right (RER): 0.8 mm
• fnx max: 0.16 mm/r
• fnx min: 8.0000000000000002E-2 mm/r
• fnx rec: 0.12 mm/r
• fnz max: 0.25 mm
• fnz min: 0.10000000000000001 mm
• fnz rec: 0.20000000000000001 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: QD-NH-0400-0008-TM 1135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting length, max. (APMX): 2.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut QD -size H
• Cutting direction (HAND): N
• Grade: 1135
• Chip breaker, manufacturer designation (CBMD): TM
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• vc max: 125~155 m/min
• vc min: 100~120 m/min
• vc rec: 105~130 m/min
• Material classification level 1 (TMC1): M~P
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.8 °
• Grade: 1135
• All ISO application areas: P|M|K
