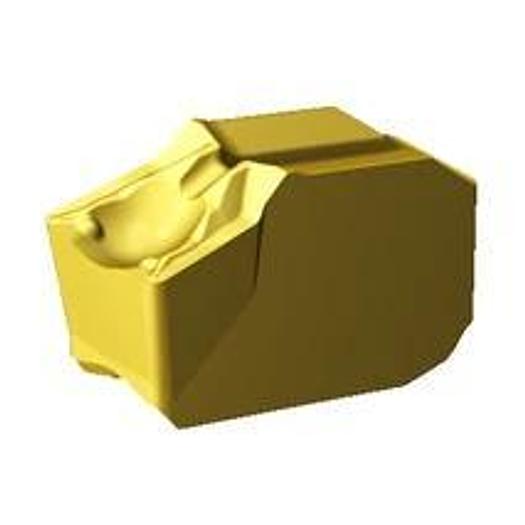

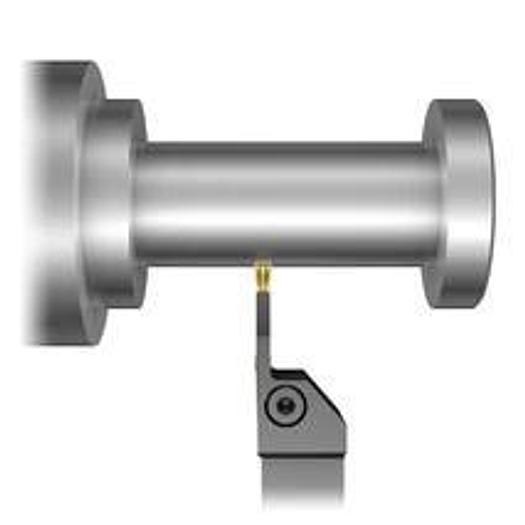

CoroCut QD indexable inserts for longitudinal turning

CoroCut® QD indexable insert for turning

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.25 mm/r
• fnx min: 8.9999999999999997E-2 mm/r
• fnx rec: 0.14999999999999999 mm/r
• fnz max: 0.29999999999999999 mm
• fnz min: 8.0000000000000002E-2 mm
• fnz rec: 0.19 mm
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: QD-NK-0600-0004-TF 1135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting length, max. (APMX): 4 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut QD -size K
• Cutting direction (HAND): N
• Grade: 1135
• Chip breaker, manufacturer designation (CBMD): TF
• Grooving width, nominal dimension (CW): 6 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• vc max: 100~120~145~30 m/min
• vc min: 105~22~75~85 m/min
• vc rec: 120~25~85~95 m/min
• Material classification level 1(TMC1): K~M~P~S
• Grooving width nominal dimension C: 6 mm
• Corner radius right RE: 0.4 °
• Grade: 1135
• All ISO application areas: P|M|K
