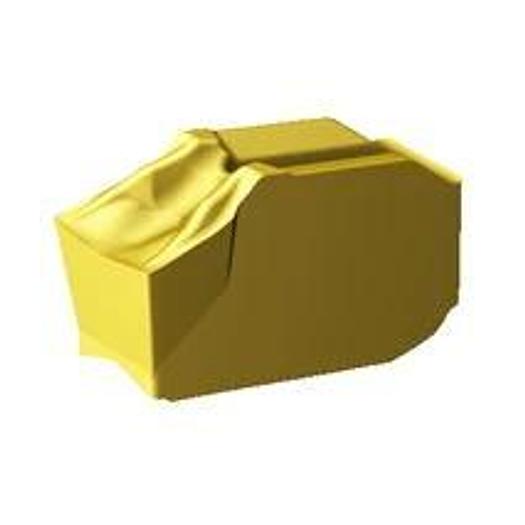

CoroCut QD parting inserts

CoroCut® QD parting insert

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.15 mm
• Corner radius, right (RER): 0.15 mm
• fnx max: 0.17000000000000001mm/r
• fnx min: 5.0000000000000003E-2 mm/r
• fnx rec: 7.0000000000000007E-2 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: QD-NF-0250-0001-CF 1135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut QD -size F
• Cutting direction (HAND): N
• Grade: 1135
• Chip breaker, manufacturer designation (CBMD): CF
• Grooving width, nominal dimension (CW): 2.5 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• vc max: 120~150~180 m/min
• vc min: 120~85~95 m/min
• vc rec: 115~140~95 m/min
• Material classification level 1(TMC1): K~M~P
• Grooving width nominal dimension C: 2.5 mm
• Corner radius right RE: 0.15 °
• Grade: 1135
• All ISO application areas: P|M|K
