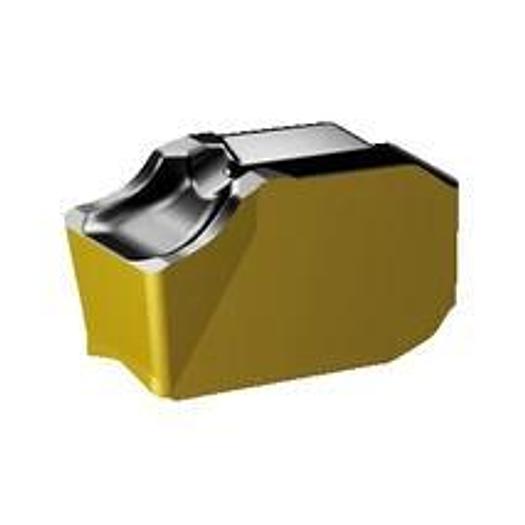

CoroCut QD parting inserts

SANDVIK inserts COROCUT QD -CR

• Application Area: TP
• Coating Process Type: CVD
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.31 mm/r
• fnx min: 0.11 mm/r
• fnx rec: 0.16 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: QD-NH-0400-0003-CR 4325
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut QD -size H
• Cutting direction (HAND): N
• Grade: 4325
• Chip breaker, manufacturer's designation (CBMD): CR
• Grooving width, nominal dimension (CW): 4 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• vc max: 170~220 m/min
• vc min: 120~155 m/min
• vc rec: 140~175 m/min
• Material classification level 1(TMC1): K~P
• Grooving width nominal dimension C: 4 mm
• Corner radius right RE: 0.3 °
• Grade: 4325
• All ISO application areas: P|K
