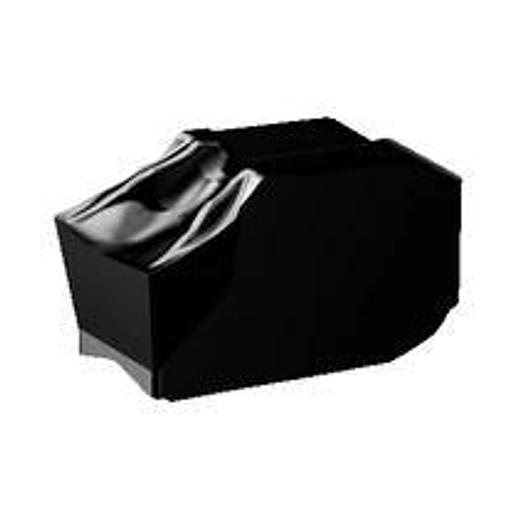

CoroCut QD parting inserts

CoroCut® QD parting insert

• Coating Process Type: PVD
• Corner radius, left (REL): 0.15 mm
• Corner radius, right (RER): 0.15 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: QD-NG-0300-0001-CF 1105
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut QD -size G
• Cutting direction (HAND): N
• Grade: 1105
• Chip breaker, manufacturer designation (CBMD): CF
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): -0.05 mm
• Grooving width nominal dimension C: 3 mm
• Corner radius right RE: 0.15 °
• Grade: 1105
• All ISO application areas: M|N|S
