CoroCut QD blades and clamping blocks

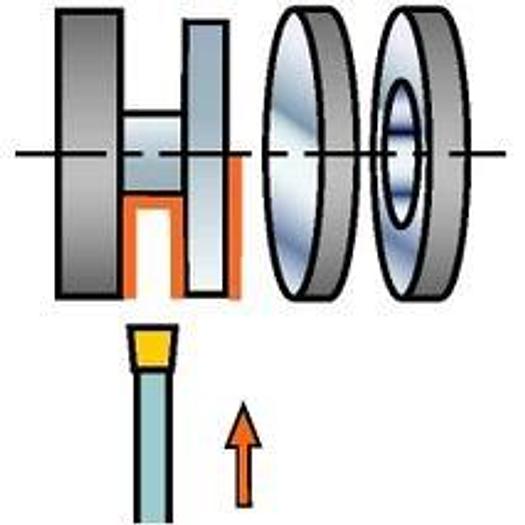

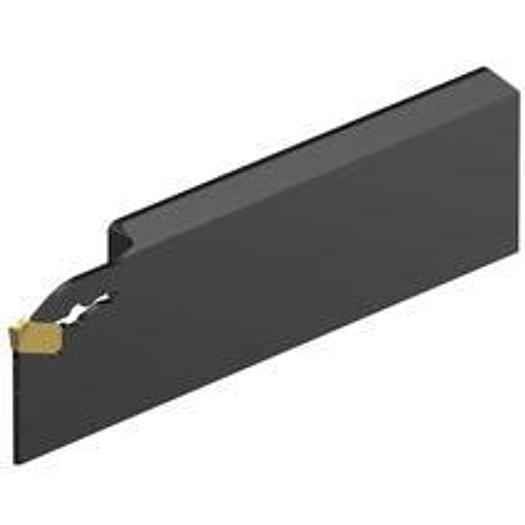

CoroCut® QD cassette for parting off

• Adapter interface machine direction (ADINTMS): Parting off and grooving blade -size 25R
• Functional width (WF): 8.25 mm
• Functional height (HF): 25 mm
• Functional length (LF): 110 mm
• Manufacturer's article number: QD-LR1E26C25A
• Manufacturer: SANDVIK COROMANT
• IC Code: 14000
• Coolant pressure (CP): 70 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 2: radial entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 50 mm
• Minimum cantilever length (OHN): 26 mm
• Shaft height (H): 31.9 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 26 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut QD -size E (QD-NE-0200-0002-CM)
• Functional width W: 8.25 mm
• Adapter interface machine direction ADINTM: Parting off and grooving blade -size 25R
• Functional length L: 110 mm
