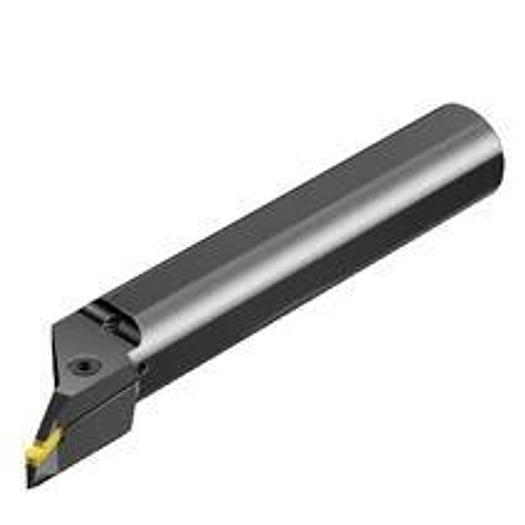

CoroCut 1 and 2 boring bar, one-piece

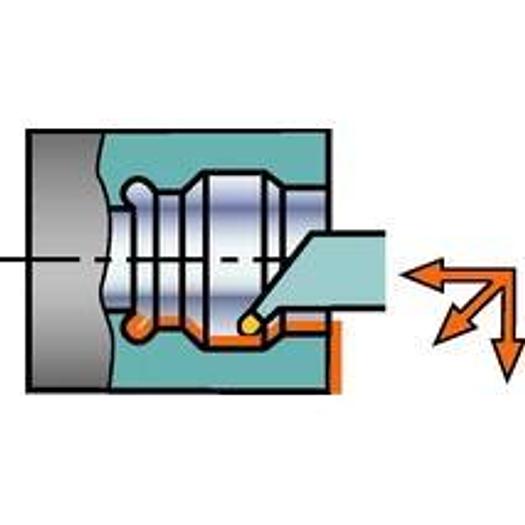

Boring bar for profile turning CoroCut® 1-2

• Adapter interface machine direction(ADINTMS): Cylindrical shank w/ 3 flats -inch: 1 1/2
• Bore diameter, min.(DMIN1): 63.5 mm
• DCONMS: 38.1 mm
• Torque (TQ): 3 Nm
• Immersion angle, max.(RMPX): 20 deg
• Functional width (WF): 25.4 mm
• Functional height (HF): 17.45 mm
• Functional length (LF): 254 mm
• Manufacturer item number: RAX123L094-24B-020
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body angle, workpiece side (BAWS): 20 deg
• cantilever length (LPR): 254 mm
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 152.4 mm
• Minimum cantilever length (OHN): 65.3 mm
• Shaft height (H): 34.9 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 23.9 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroCut 2 -size L (N123L2-AM)
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: Cylindrical shank w/ 3 flats -inch: 1 1/2
• Part_2 of the identifiers for the cutting part interface_CUTIN: CoroCut 2 -size L (N123L2-AM)
• Maximum cantilever length OH: 152.4 mm
