profile turning

profile turning
$60 (USD)
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description

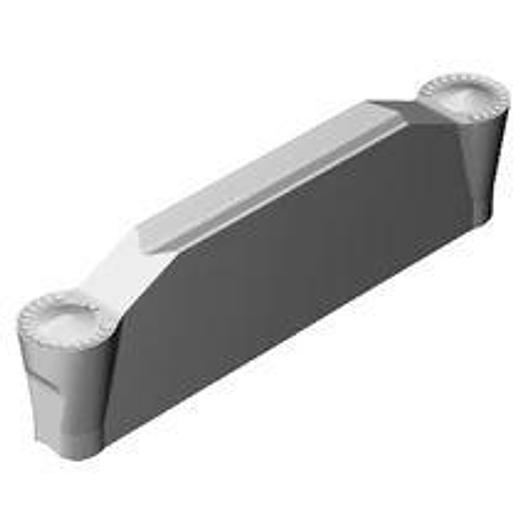

SANDVIK COROCUT mold turning plates -RM
- Application Area: TP
- Corner radius (RE): 1.5 mm
- fnx max: 0.20999999999999999 mm/r
- fnx min: 8.0000000000000002E-2 mm/r
- fnx rec: 0.14999999999999999 mm/r
- fnz max: 0.56999999999999995 mm
- fnz min: 0.23000000000000001 mm
- fnz rec: 0.40000000000000002 mm
- Main clearance angle (AN): 7 deg
- Manufacturer item number: N123F2-0300-RM H13A
- Manufacturer: SANDVIK COROMANT
- IC Code: 18000
- ISO Cutting Tool Material: HW
- Length of interfering edge (LIG): 20.07 mm
- Life Cycle Status (LCS): 20
- Upper corner radius tolerance (RETOLU): 0.1 mm
- Upper cutting width tolerance (CWTOLU): 0.1 mm
- Cutting length, max. (APMX): 1.3 mm
- Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size F2
- Cutting direction (HAND): N
- Cutting depth, max. (CDX): 18.6 mm
- Grade: H13A
- Chip breaker, manufacturer designation (CBMD): RM
- Grooving width, nominal dimension (CW): 3 mm
- Substrate Type: WC
- TMC Order: 1
- Lower corner radius tolerance (RETOLL): -0.1 mm
- vc max: 1900 m/min
- vc min: 190 m/min
- vc rec: 1500 m/min
- Material classification level 1 (TMC1): N
- Corner radius R: 1.5 mm
- Chipbreaker manufacturer designation CBM: RM
- Grade: H13A
- Recommended variety: N
- All ISO application areas: M|K|N
Specifications
Manufacturer | SANDVIK COROMANT |
Model | N123F2-0300-RMH13A |
Year | 2025 |
Condition | New |
Serial Number | 520 N123F2-0300-RM H13A |
Stock Number | . |
