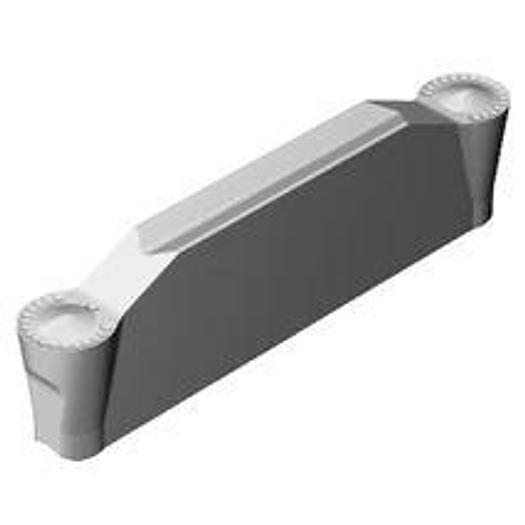

profile turning

CoroCut® 1-2 cutting system for profile turning

• Application Area: TP
• Corner radius (RE): 4 mm
• fnx max: 0.31 mm/r
• fnx min: 0.19 mm/r
• fnx rec: 0.25 mm/r
• fnz max: 0.81000000000000005 mm
• fnz min: 0.23999999999999999 mm
• fnz rec: 0.52000000000000002 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123L2-0800-RM H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Length of interfering edge (LIG): 30.8 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 3.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size L2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 27 mm
• Grade: H13A
• Chip breaker, manufacturer designation (CBMD): RM
• Grooving width, nominal dimension (CW): 8 mm
• Substrate Type: WC
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 1900 m/min
• vc min: 190 m/min
• vc rec: 1500 m/min
• Material classification level 1 (TMC1): N
• Corner radius R: 4 mm
• Chipbreaker manufacturer designation CBM: RM
• Grade: H13A
• All ISO application areas: M|K|N
• Recommended variety: N
