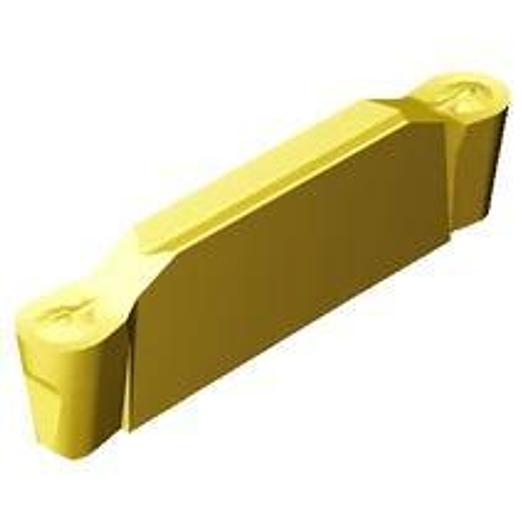

profile turning

SANDVIK COROCUT mold turning plates -RM

• Application Area: TP
• Coating Process Type: CVD
• Corner radius (RE): 1.5 mm
• fnx max: 0.20999999999999999 mm/r
• fnx min: 8.0000000000000002E-2 mm/r
• fnx rec: 0.14999999999999999 mm/r
• fnz max: 0.56999999999999995 mm
• fnz min: 0.23000000000000001 mm
• fnz rec: 0.40000000000000002 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123F2-0300-RM 2135
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Length of interfering edge (LIG): 19.84 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 1.3 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size F2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 18.6 mm
• Grade: 2135
• Chip breaker, manufacturer designation (CBMD): RM
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 125~155 m/min
• vc min: 110~90 m/min
• vc rec: 100~125 m/min
• Material classification level 1 (TMC1): M~P
• Corner radius R: 1.5 mm
• Chipbreaker manufacturer designation CBM: RM
• Grade: 2135
• All ISO application areas: P|M
