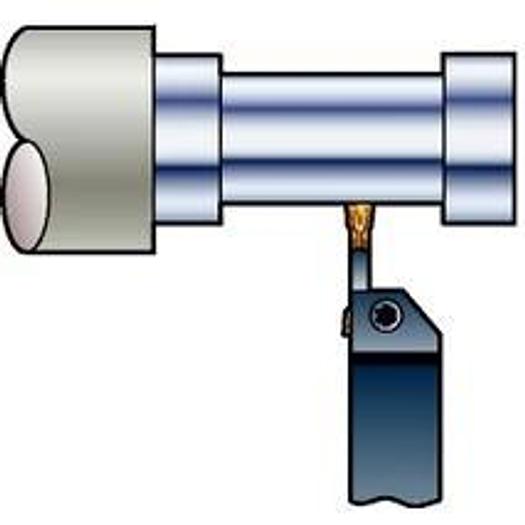

longitudinal turning

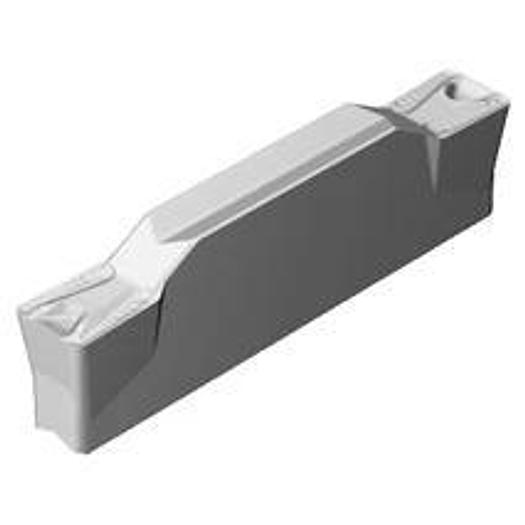

SANDVIK COROCUT longitudinal turning plates-TM

• Application Area: TP
• Corner radius, left (REL): 0.8 mm
• Corner radius, right (RER): 0.8 mm
• fnx max: 0.17999999999999999 mm/r
• fnx min: 0.11 mm/r
• fnx rec: 0.14000000000000001 mm/r
• fnz max: 0.29999999999999999 mm
• fnz min: 0.14000000000000001 mm
• fnz rec: 0.22 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123J2-0500-0008-TM H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Length of interfering edge (LIG): 24.67 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 2.7 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size J2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 23 mm
• Grade: H13A
• Chip breaker, manufacturer designation (CBMD): TM
• Grooving width, nominal dimension (CW): 5 mm
• Substrate Type: WC
• TMC Order: 1~2
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 17~1900 m/min
• vc min: 15~190 m/min
• vc rec: 15~1500 m/min
• Material classification level 1(TMC1): N~S
• Grooving width nominal dimension C: 5 mm
• Corner radius right RE: 0.8 °
• Grade: H13A
• All ISO application areas: M|K|N|S
• Recommended variety: N|S
