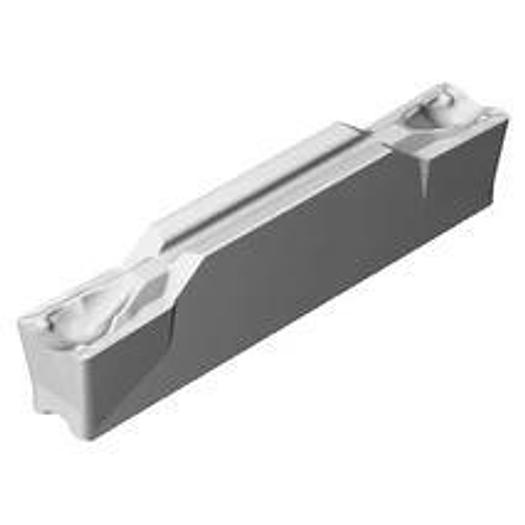

longitudinal turning

CoroCut® 1-2 cutting system for turning

• Application Area: TP
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fnx max: 0.14000000000000001 mm/r
• fnx min: 2.9999999999999999E-2 mm/r
• fnx rec: 0.10000000000000001 mm/r
• fnz max: 0.23000000000000001 mm
• fnz min: 4.0000000000000001E-2 mm
• fnz rec: 0.13 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123G2-0300-0003-TF H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Length of interfering edge (LIG): 19.57 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting length, max. (APMX): 1.8 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size G2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 18.5 mm
• Grade: H13A
• Chip breaker, manufacturer designation (CBMD): TF
• Grooving width, nominal dimension (CW): 3 mm
• Substrate Type: WC
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 1900 m/min
• vc min: 190 m/min
• vc rec: 1500 m/min
• Material classification level 1 (TMC1): N
• Grooving width nominal dimension C: 3 mm
• Corner radius right RE: 0.3 °
• Grade: H13A
• Recommended variety: N
• All ISO application areas: M|K|N|S
