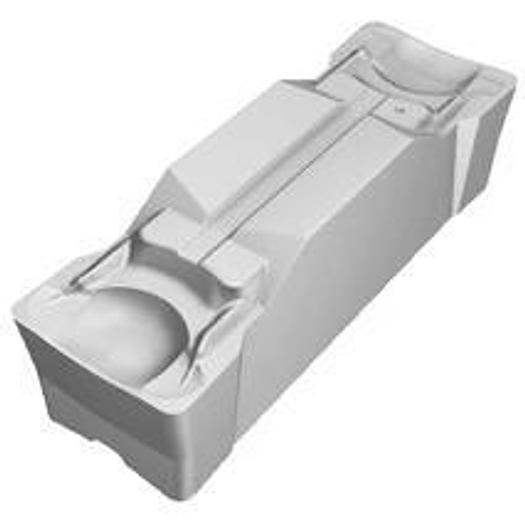

piercing

CoroCut® 1-2 cutting system for grooving

• Application Area: TP
• Corner radius, left (REL): 0.4 mm
• Corner radius, right (RER): 0.4 mm
• fnx max: 0.19 mm/r
• fnx min: 7.0000000000000007E-2 mm/r
• fnx rec: 0.12 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer's ArtNo: N123J2-0500-0004-GM H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Length of interfering edge (LIG): 24.5923 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.1 mm
• Upper cutting width tolerance (CWTOLU): 0.1 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size J2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 22.9 mm
• Grade: H13A
• Chipbreaker, manufacturer designation (CBMD): GM
• Grooving width, nominal dimension (CW): 5 mm
• Substrate Type: WC
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.1 mm
• vc max: 1900 m/min
• vc min: 190 m/min
• vc rec: 1500 m/min
• Material classification level 1 (TMC1): N
• Grooving width nominal dimension C: 5 mm
• Corner radius right RE: 0.4 °
• Grade: H13A
• All ISO application areas: M|K|N
• Recommended variety: N
