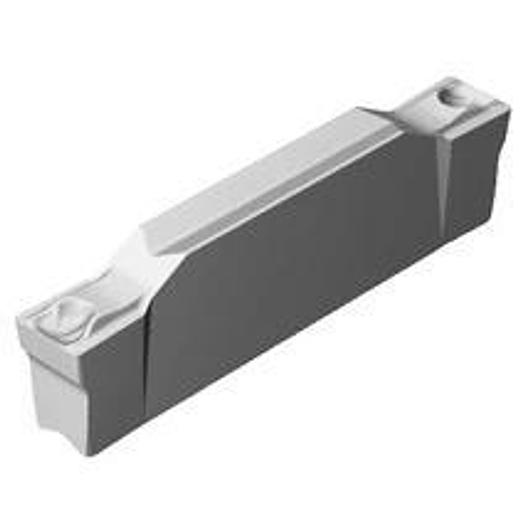

piercing

CoroCut® 1-2 cutting system for grooving

• Application Area: TP
• Corner radius, left (REL): 0.1 mm
• Corner radius, right (RER): 0.1 mm
• fnx max: 0.16 mm/r
• fnx min: 4.0000000000000001E-2 mm/r
• fnx rec: 8.0000000000000002E-2 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: N123E2-0185-0001-GF H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Length of interfering edge (LIG): 20.05 mm
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.13 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroCut 1-2 -size E2
• Cutting direction (HAND): N
• Cutting depth, max. (CDX): 19.3 mm
• Grade: H13A
• Chip breaker, manufacturer designation (CBMD): GF
• Grooving width, nominal dimension (CW): 1.85 mm
• Substrate Type: WC
• TMC Order: 1
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): 0.09 mm
• vc max: 1900 m/min
• vc min: 190 m/min
• vc rec: 1500 m/min
• Material classification level 1 (TMC1): N
• Grooving width nominal dimension C: 1.85 mm
• Corner radius right RE: 0.1 °
• Grade: H13A
• All ISO application areas: M|K|N|S
